What Does Anemometer Measure and How Does It Actually Work?

Understanding what an anemometer measures more important. An anemometer is an instrument that measures wind speed and wind pressure. The term comes from the Greek words anemos (wind) and metron (measure). These devices report measurements in various units including miles per hour, kilometers per hour, meters per second, or knots. Meteorologists track weather patterns with them and NASA plans missions to Venus using them. Anemometers serve vital roles in industries of all types. This piece explores what anemometers measure and how different types work. We’ll also look at who relies on these wind-measuring instruments.

Understanding What Anemometers Measure

An anemometer converts wind movement into readable data at its core. The device responds to airflow and transforms that motion into measurable information, whether through mechanical rotation, electronic changes in heat, sound waves, or light as air flows past a sensor. The goal remains consistent across all designs: translate wind movement into a quantifiable value.

Wind Speed Measurement Basics

Mechanical anemometers operate on a straightforward principle. These devices use rotating parts like cups or propellers, where the rotation speed relates to wind velocity. The force produced on an object is proportional to the speed of air flowing past it. The speed of rotation reflects the wind’s velocity when wind spins the cups or propeller.

Other designs follow different approaches. Thermal anemometers, for example, use a tiny heated wire that gets cooled by wind. The faster the cooling occurs, the higher the wind speed. Ultrasonic models emit sonic signals between sensors, and wind affects the time it takes for sound to travel between points. The device calculates wind speed based on this. The time a sonic pulse takes to travel from one transducer to its pair is inversely proportionate to the speed of sound in air plus the wind velocity in the same direction.

Wind Direction and Pressure Detection

While wind speed is the main measurement, many modern anemometers also measure wind direction and air pressure. Wind direction is measured relative to true north and reported from where the wind is blowing. An easterly wind blows from the east or 90 degrees, a southerly from the south or 180 degrees, and a westerly from the west or 270 degrees.

Pressure-based anemometers detect changes in air pressure caused by wind and use that data to estimate wind speed. Some models record average wind speed over time intervals, detect gusts, or report continuous up-to-the-minute data.

Measurement Units Explained

Wind speed appears in different units depending on the region or industry. Most anemometers allow switching between meters per second (m/s), common in science and meteorology; kilometers per hour (km/h) for general weather reporting; miles per hour (mph), mostly used in the U.S.; knots (kt), standard for aviation and marine navigation; and feet per minute (ft/min), often used for ventilation and HVAC.

Wind speed is measured at 10 meters above ground in meteorology to standardize global readings.

How Anemometers Actually Work

The inner workings of an anemometer depend on converting physical motion or environmental changes into electrical signals that can be processed and displayed.

Mechanical Anemometer Operation

Cup anemometers remain the most used devices in the wind energy sector and show linear response in the normal wind speed range from 4 m/s to 16 m/s. Their performance is based on a transfer function: V = Af + B, where V is wind speed, f is the anemometer’s rotation frequency output, and A (slope) and B (offset) are calibration coefficients. This linear equation associates wind speed with the anemometer’s output frequency and must be defined through calibration.

The asymmetric drag on the concave and convex sides of the cups creates torque on the anemometer’s axis and causes rotation. Rotation speed should be proportional to wind speed theoretically, but turbulence, drag and friction on the mount point all influence actual performance.

Cup Rotation and Magnet Technology

The number of pulses generated per revolution is different based on the anemometer’s inner system. Magnet-based systems give 1 to 3 pulses per revolution, whereas optoelectronics-based systems give higher pulse rates, from 6 to 44.

Tiny magnets mounted on fan blades move past a reed switch with each rotation in magnet designs. The reed switch closes when a magnet is nearby and generates a pulse of electric current before opening again. Spinning cups turn a paddle wheel that breaks a light beam each rotation in optoelectronic designs and generate current pulses.

Electronic Sensors and Digital Processing

Electronic circuits time these pulses and convert them into wind speed calculations. The pulse frequency is proportional to wind speed and allows processors to calculate velocity from pulse counts.

Sonic Pulse Technology

Ultrasonic anemometers measure wind using sound wave propagation. The time a sonic pulse takes to travel from one transducer to its pair follows the formula: T = L/(c+v), where T is time, L is distance between transducers, c is speed of sound, and v is air speed along the transducer axis. Transducers alternate as transmitter and receiver and send pulses in both directions to calculate air speed: v = 0.5L(1/t1-1/t2).

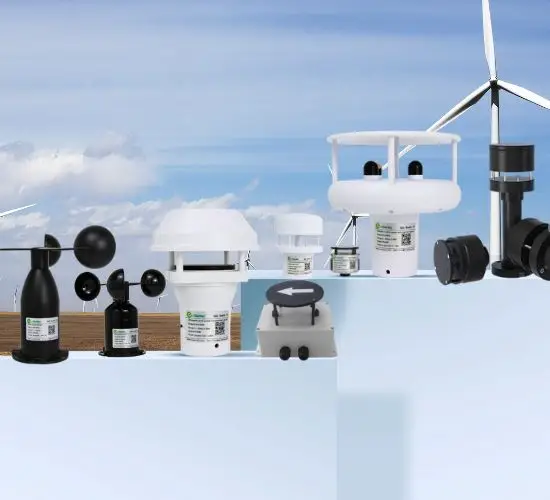

Main Types of Wind Measuring Devices

Different anemometer designs serve specific applications based on their measurement principles and construction.

Cup and Vane Anemometers

The 3-cup design stands as the most common anemometer in meteorological applications. Three hemispherical cups mount on horizontal arms connected to a vertical axis. Wind causes rotation, with speed proportional to wind velocity. Cup anemometers are omni-directional and respond well to rapid changes in wind direction.

Vane anemometers combine a propeller with a tail vane that lines up with wind direction. HVAC systems and environmental monitoring use them commonly.

Thermal and Hot Wire Models

Hot-wire anemometers use an electrically heated wire that cools as air flows past. The cooling rate relates to wind velocity. These instruments offer very high sensitivity and fast response. They are ideal to measure low wind speeds and turbulent fluctuations. But the fragile sensing wire is susceptible to damage.

Ultrasonic Anemometers

Ultrasonic models have no moving parts. This eliminates mechanical wear and reduces maintenance. They measure wind by sending ultrasonic pulses between transducers. Wind affects sound travel time and allows calculation of wind speed and direction.

Handheld Portable Devices

The Kestrel 1000 weighs just 2.29 ounces and measures winds up to 135 mph. It switches between mph, km/h, ft/min, m/s, knots, and Beaufort. The 1-inch user-replaceable impeller mounts on a sapphire jewel bearing and rotates with the slightest air movement.

Weather Station Anemometers

Davis mechanical anemometers feature sealed stainless steel ball bearings to ensure long-life continuous use. Sonic anemometers operate from 0 to 89 mph with solar power and battery backup.

Who Uses Anemometers and Why

Accurate wind measurements serve professional users across multiple industries, where wind thresholds determine whether operations can safely continue.

Meteorologists and Weather Services

Weather stations use anemometers for real-time wind data needed for forecasting and severe weather alerts. Wind speed and direction measurements help meteorologists track storm systems and predict atmospheric fronts. They issue warnings for hurricanes and tornadoes. Long-term anemometer data helps climate research by analyzing wind patterns and climate trends over time.

Pilots and Aviation Professionals

Anemometers at airports measure wind speed and direction for safe takeoffs, landings, and taxiing operations. They detect wind shear, rapid changes in wind speed and direction that pose hazards during takeoff and landing. Flight testing relies on anemometers to measure airspeed during aircraft performance evaluations and certification tests.

Marine and Boating Applications

Ships and ports require accurate wind measurements for safe docking maneuvers and navigation. Anemometers help adjust docking positions and create anchoring plans.

Engineers and HVAC Specialists

HVAC technicians use anemometers to measure airflow through ducts and vents. This ensures proper ventilation and energy efficiency. Anemometers balance airflow rates in hospitals. Proper air exchange minimizes infection risks.

Drone Operators and Hobbyists

Pre-flight checks include wind speed measurements to prevent drifting and loss of control. Thermal anemometers weighing about 1 gram enable accurate wind profiling for drones.

Renewable Energy Industry

Wind farms use anemometers to assess wind speeds at potential sites. This determines project feasibility and efficiency. Operators adjust turbine settings based on anemometer data to optimize energy output.

Conclusion

Anemometers might seem like simple devices, but they play critical roles in countless industries. Cup designs and ultrasonic models each serve specific measurement needs with precision. Whether you’re a meteorologist forecasting storms, a pilot checking flight conditions, or a wind farm engineer optimizing turbine output, understanding how these instruments measure wind speed, direction and pressure helps you make safer, more informed decisions. The right anemometer transforms invisible air movement into applicable data.
