Environmental Sensors: Monitors & Instruments

Environmental sensors are devices that detect physical changes in our surroundings, such as temperature, humidity, and air pollution. They provide data on environmental quality and changing trends to ensure the safety of public life and property. These environment sensors measure parameters like temperature and humidity. To name just one example, data centers require temperature ranges between 18°-27°C / 65°-80°F at intake and relative humidity between 40% and 60%. In this piece, we’ll explore what environmental sensors are, how environmental monitoring sensors work, the types available, and the applications of environmental monitoring systems in industries of all types.

What Are Environmental Sensors

Definition and Simple Purpose

We need environmental monitoring to protect the public and environment from toxic contaminants and pathogens released into air, soil, and water. Environmental sensors are electronic devices designed to monitor and measure physical, chemical, or biological parameters in the environment. These sensors detect specific changes, such as pollutant concentrations or moisture levels, and convert them into analyzable electrical signals that users or systems can process.

Accurate, inexpensive long-term monitoring of environmental contaminants is needed using sensors that can be operated on site or in situ. These devices serve as the main sensory organ of a much larger monitoring system and collect data related to various aspects like air quality, specific gas concentrations, or other environmental factors. The sensor picks up changes in one or more of those factors and sends out a signal so the rest of the device may perform the work to be done.

A technology-needs analysis determined that the most important requirements were the use of fieldable instrumentation for organic compounds in water, soil, and air, and for Resource Conservation and Recovery Act (RCRA) metals in water and soil. Environmental monitoring transforms guesswork into useful insights that protect human health, preserve ecosystems, and support compliance with environmental regulations.

Key Characteristics of Environment Sensors

Environmental sensors offer distinct advantages compared to traditional manual monitoring methods. Live monitoring provides continuous data collection with instant feedback. Advanced sensing technologies ensure data accuracy and deliver high precision. Automation reduces human intervention and improves efficiency, while versatility allows customizable designs tailored to various environmental parameters.

Key components make effective monitoring and management easier. The sensing element serves as the core component responsible for detecting environmental factors. Signal conditioning units process the sensor’s raw data and enhance accuracy to ensure reliable readings. Data transmission modules make the transfer of processed data to monitoring systems or cloud platforms easier for analysis and storage. Calibration mechanisms ensure the sensor continues to provide accurate and consistent measurements over time. Power sources may include batteries for portable sensors in remote locations or connection to the power grid for continuous operation in fixed installations.

How Environmental Monitoring Sensors Differ from Other Sensors

Environmental sensors are connected objects capable of providing various types of information, including location, position, movements and contextual elements. They pose particular ethical problems as they represent a type of surveillance which can affect an individual’s private life, depending on where they are placed. Data they collect can, by cross-referencing with information from other sources, contribute to the production of individual-specific health information and the generation of alarms.

A leap in technology would occur if the performance of field instruments more closely approaches that of laboratory-based instruments. Field instrumentation has been expanding due to cost savings from on-site analysis and improved regulatory and customer acceptance of on-site methods, based on equipment user surveys. The environmental field instrument market is expected to enjoy an average growth of 7% annually for the foreseeable future.

Environmental monitoring makes faster identification of emerging risks possible and supports analytical decision-making in industries and governments. Monitoring systems help detect subtle changes in environmental parameters before they escalate into larger crises and serve as an early warning system for pollution spikes, hazardous conditions, and ecosystem stress.

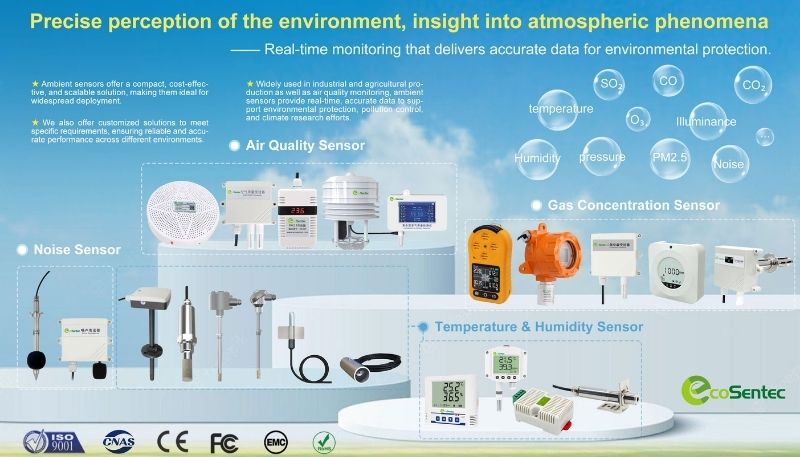

Types of Environmental Sensors

Multiple categories of environmental monitoring sensors exist. Each one measures specific parameters in different media. Understanding these differences helps you select appropriate monitoring equipment for particular applications.

Air Quality Monitoring Sensors

Air quality sensors detect pollutants such as carbon dioxide, volatile organic compounds (VOCs), and particulate matter. They help with the assessment and improvement of air quality. These devices measure elements such as PM2.5, PM10, formaldehyde, and TVOC, along with parameters like negative oxygen ions. Low-cost air pollution monitors use one or more sensors to detect, monitor and report on specific air pollutants like particulate matter or carbon dioxide. They also track environmental factors such as temperature and humidity.

Different sensor configurations serve varied monitoring needs. Some models measure only particulate matter concentrations (PM1, PM2.5, PM10). Others monitor gasses such as NO₂, O₃, SO₂, and CO. Multi-function sensors can monitor 11 air quality elements at once. This provides efficient monitoring for areas with high pollutant variability.

Water Quality Sensors

Water quality sensors review the safety of drinking water and monitor the well-being of aquatic ecosystems. They measure factors such as pH, turbidity, and pollutants. These instruments measure chemical, physical, and biological properties to ensure water remains safe for consumption, industrial processes, and environmental health. Parameters tracked include dissolved oxygen, conductivity, chlorine residual, total organic carbon (TOC), and oxygen-reduction potential.

Sensors employ two main approaches: direct measurement of constituents of interest or measurement of surrogates that may indicate the presence of unanticipated contaminants. Chlorine sensors measure free chlorine, monochloramine, and total chlorine for disinfection applications.

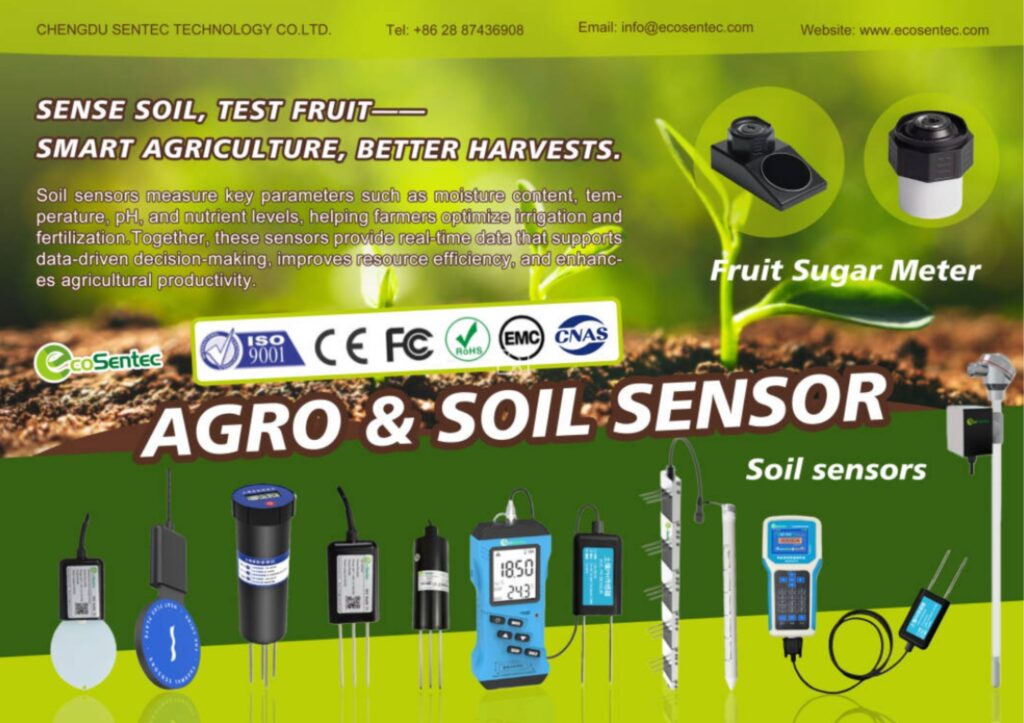

Soil Moisture and Temperature Sensors

Soil moisture sensors measure moisture levels in the soil. They provide data for environmental management and agricultural practices. These sensors divide into two categories: those measuring volumetric water content and those measuring soil tension when placed in the soil profile. Volumetric water content expresses the volume of liquid water per volume of soil, usually as a percentage.

Common electromagnetic sensors include capacitance sensors or frequency domain reflectometry (FDR) sensors and time domain reflectometry (TDR) sensors. Soil tension indicates the energy required by plant roots to extract water from soil particles. It’s expressed in centibars or bars of atmospheric pressure.

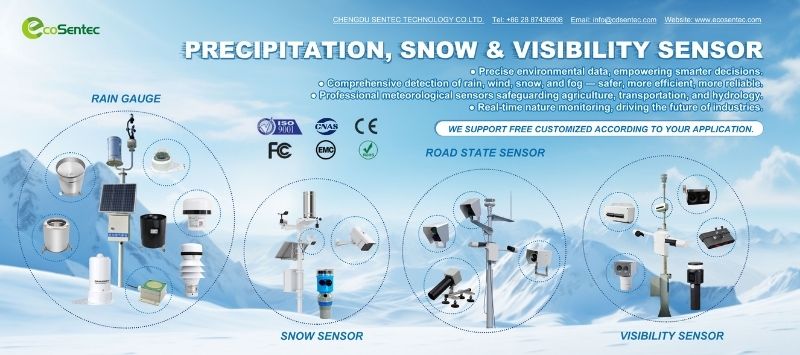

Meteorological Sensors

Meteorological sensors track weather-related factors like temperature, humidity, wind speed, and rainfall. They play a major role in climate trend analysis. Weather stations include thermometers for measuring air temperature and barometers for atmospheric pressure. They also have hygrometers for humidity, anemometers for wind speed, pyranometers for solar radiation, and rain gages for precipitation.

You can measure wind speed using cup, windmill, or sonic anemometers. Each type offers different advantages in accuracy, cost-efficiency, and sensitivity. Precipitation sensors measure water volume using tipping bucket mechanisms or employ radar and pressure sensors to distinguish between rain, snow, sleet, and hail.

Gas Detection Sensors

Gas detectors are characterized most commonly by the sensor technologies inside. The four main types include catalytic bead sensors for detecting combustible gasses and infrared sensors for gasses like methane and carbon dioxide. There are also electrochemical sensors for toxic gasses like carbon monoxide and hydrogen sulfide, and photoionization detectors (PID) for volatile organic compounds.

Catalytic diffusion sensors represent the most used devices for detecting combustible gasses and vapors. Electrochemical sensors measure specific gas concentrations by oxidizing or reducing the gas at an electrode. This generates a current flow proportional to gas concentration.

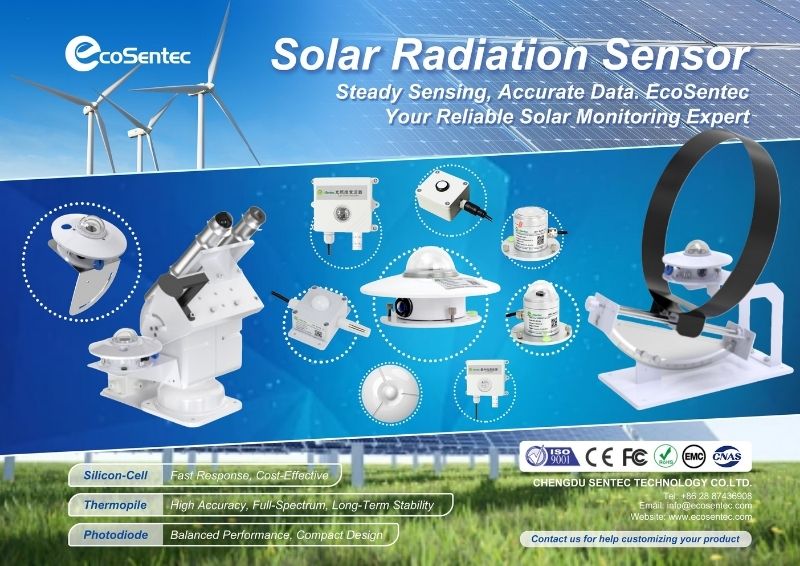

Radiation and Light Sensors

Solar radiation, photosynthetically active radiation, and ultraviolet rays affect the meteorological environment. Solar radiation sensors measure total solar radiation intensity in the environment, with a spectral range of 0.3-3μm. PAR sensors measure photosynthetically active radiation of natural light in the wavelength range of 400-700nm. This serves as the energy source for plant life activities and yield formation. UV sensors convert ultraviolet signals into electrical signals using photosensitive elements.

How Environmental Sensors Work

Every environmental monitoring system has a multi-stage process at its core that transforms physical phenomena into applicable data. Environmental sensors convert chemical information into analytically useful signals. This information ranges from the concentration of specific components to total composition.

Sensing Elements and Detection Methods

Target parameters interact directly with the sensing element. These parameters include temperature, pollutants, and moisture. Chemical sensors comprise target sensing and signal-transducing elements. They vary according to the sensing element source and the type of signal-transducing element. Data transduction methods classify these devices. The methods include electrochemical, optical and thermal techniques.

Interactions between sensing elements and targets induce changes in electrochemical properties. Electrochemical sensors measure these changes. We can divide them into potentiometric sensors, voltametric sensors and conductimetric sensors. The transducer could be a photoelectric cell that measures light levels, a thermocouple for temperature or a biosensor to detect organic compounds. Air pollution sensors use laser and electrochemical methods to detect pollutants like PM2.5 and ozone. Two cells installed in the gas module of the sensor provide the readings.

Calibration and Accuracy Maintenance

Sensors deliver consistent and precise data through periodic recalibration. Calibration minimizes systematic error and enables quantification of measurement uncertainty. Field calibration through comparison with collocated reference equipment can be more advantageous in terms of cost and accuracy. It accounts for local conditions. Sensor outputs drift and create misleading readings if we skip calibration.

Applications of Environmental Monitoring Systems

Industries worldwide deploy environmental monitoring systems to address operational challenges, regulatory requirements, and sustainability goals. These applications span manufacturing floors to agricultural fields, urban centers to healthcare facilities.

Industrial and Manufacturing Facilities

Manufacturing operations use IoT technology to monitor dust, gas, CO2, water, and hazardous materials. This optimizes factory operation and ensures environmental quality. Continuous tracking of emissions helps detect harmful pollutants and supports regulatory adherence. It also improves operations for safer, eco-friendly industrial practices. Facilities can detect equipment malfunctions or inefficiencies before they lead to regulatory fines, equipment breakdowns, or reputational damage by identifying patterns in pollution levels.

Agriculture and Precision Farming

Precision agriculture technologies optimize crop management through analytical approaches. IoT devices provide continuous monitoring of environmental conditions and enable timely decision-making. Farmers using these technologies achieved a 4% increase in crop production, 7% improvement in fertilizer placement efficiency, 9% reduction in herbicide and pesticide use, 6% reduction in fossil fuel consumption, and 4% decrease in water usage. Soil moisture sensors measure humidity at various depths. Environmental sensors track air temperature, rainfall, chlorophyll, wind speed, and solar radiation.

Smart Cities and Urban Planning

Urban areas house 55% of the world’s population. Environmental monitoring sensors are the foundations of smart city initiatives. These networked IoT devices collect live data on air quality, noise levels, and water quality. Barcelona deployed city-wide air quality sensors and achieved NO₂ reductions in congested districts by a lot. Singapore uses water quality sensors in reservoirs to monitor nutrient levels, prevent algal blooms, and optimize treatment processes.

Healthcare and Indoor Air Quality

Hospital air quality monitoring protects patients and staff from contaminants. These include infectious diseases, viruses, bacteria, and harmful chemicals. Monitoring systems track particulate matter, VOCs, carbon dioxide, temperature, humidity, and air pressure. These systems matter especially in operating rooms, recovery rooms, and maternity wards where vulnerable patients are located.

Climate Research and Weather Forecasting

NOAA’s Climate Forecast System version 2 (CFSv2) increases the length of skillful forecasts from 6 to 17 days. It nearly doubles seasonal forecast skill for temperatures and improves global sea surface temperature predictions by a lot. These systems integrate satellite observations, ground-based data, and forecast models to monitor climate changes.

Challenges in Environmental Sensor Deployment

Deploying environmental monitoring systems in ground conditions presents obstacles that extend beyond original installation. Understanding these challenges helps organizations make informed decisions about sensor selection and maintenance strategies.

Accuracy and Calibration Issues

Low-cost sensors suffer from substantial uncertainties because of large data outliers, weak correlations and low data precision. Sensors can exhibit bias and measure either high or low in their overall readings. If data from a monitor were biased high, regulatory agencies could judge an area to be out of compliance. This could result in air pollution regulations being imposed that get pricey. Calibration drift occurs over time. Regular recalibration becomes necessary. Environmental interference from dust, water or electrical factors can skew sensor readings. Biofouling and microbial colonization alter electrochemical properties once sensors are deployed.

Cost Considerations

Total Cost of Ownership has not only the original purchase price but also installation, calibration, maintenance, downtime and replacement expenses. Regular calibration incurs costs such as technician labor, calibration equipment and potential downtime during sensor adjustment or replacement. Primary cost components of water quality sensors include designing and installing sensors with power supply utility, communication equipment, access, lighting and security.

Conclusion

Environmental sensors have evolved from simple measurement tools into sophisticated monitoring systems that protect public health and drive eco-friendly practices. We’ve explored how these devices span multiple categories including air quality monitors, water quality sensors, soil instruments and meteorological equipment. Each serves critical functions across industries.

Challenges such as calibration drift, power limitations and data management complexities exist. The benefits are undeniable though. Organizations that invest in environmental monitoring systems gain live insights and ensure regulatory compliance. They identify risks before escalation happens.

EcoSentec Sensor technology continues advancing with improved accuracy and lower costs. We can expect broader adoption across agriculture, manufacturing and urban planning. The right sensors for your specific application will end up determining your environmental monitoring strategy’s success
