How Roadway Sensors Make Fog Detection More Accurate?

Poor visibility from bad weather ranks as one of the biggest factors in road accidents. Roadway sensors have changed the way we detect and respond to dangerous driving conditions, especially with fog detection. Reduced contrast and faded colors make driving hazardous as visibility drops.

Traditional road monitoring methods have their limits. Modern road sensors now use advanced technologies like lasers and infrared light to measure visibility distances precisely. These over roadway sensors deliver operational accuracy within 10-20% across their field range and provide up-to-the-minute data. On top of that, they show remarkable improvements in detecting ice, snow, and water on road surfaces.

This piece explores EcoSentec’s state-of-the-art multispectral remote sensing technology and its enhanced fog detection accuracy in challenging weather conditions. These sensors, from fixed roadside installations to vehicle-mounted systems, revolutionize our ability to monitor and respond to visibility threats on roadways.

How do road sensors work in fog detection?

Road sensors have become vital tools that monitor dangerous weather conditions on highways. These advanced devices use different methods to spot things that reduce visibility, like fog. They provide important safety information to drivers and traffic management systems.

Types of road sensors used for weather monitoring

Several types of sensors work together to collect data about different weather conditions on roads. Visibility sensors are key parts of these systems and work by using light scattering principles. Forward-scatter visibility sensors have a projector that sends out pulsed light in a cone-shaped beam. A detector sits 33 to 70 degrees from the projector axis and picks up light scattered by fog or dust particles. On the other hand, backward-scatter sensors have projectors and detectors that line up and work in a similar way.

Modern systems go beyond these simple designs. They now include traffic cameras with Near Infrared (NIR) light sources and contrast pieces to spot fog. Some cutting-edge models even use NIR-to-visible upconversion nanomaterials (UCNPs) to catch early drops in visibility that are hard to notice.

LIDAR (Light Detection and Ranging) technology shows great promise in spotting fog. Studies show that LIDAR technology can see better and farther in fog than cameras or human eyes. Dual technology visibility sensors blend both direct attenuation and forward scatter technologies to measure airborne particle sizes more accurately.

Why fog detection is more complex than other weather events

Spotting fog comes with unique challenges compared to other weather conditions. Fog can form quickly and in specific areas, making it hard for regular weather stations to detect. This unpredictable nature is especially dangerous since Florida ranks third in the nation for crashes related to fog and smoke.

Fog creates specific visual effects by reducing contrast and making colors fade, which needs special detection methods. Regular methods that use Koschmieder’s Law only work well during daylight, so they don’t suit round-the-clock monitoring systems. This limitation raises concerns because fog often appears in early morning hours when there isn’t much light.

The tiny particles in fog present another challenge. Unlike rain or snow, fog has tiny water droplets floating in the air. Sensors need to detect these small particles. Traffic makes detection even harder because cars can block consistent objects like lane markings or signs that fog detection systems often use as reference points.

The role of over roadway sensors in visibility measurement

Over roadway sensors are vital for providing accurate, real-time visibility data. These devices work best when installed 6.5 to 10 feet (2 to 3 meters) high, which matches what drivers see. This placement gives readings that reflect actual driving conditions rather than weather data from higher up.

VS2k and VS20k visibility sensors represent modern over roadway solutions. They measure visibility up to 2,000 meters and 20,000 meters. These systems use 45° forward light scattering technology and come with useful features like active spider defense systems that reduce maintenance needs.

Over roadway sensors help manage traffic proactively. They give real-time data during foggy conditions so traffic authorities can decide when to close roads with very low visibility. This quick action can prevent dangerous chain-reaction accidents. Advanced systems can work with automated warning systems to turn on fog lamps or digital signs when visibility drops too low.

Scientists are learning how artificial intelligence and deep learning can make these sensors more reliable. Deep learning for image-based fog detection looks promising because it uses whole-image features instead of specific road elements that might be hidden.

Key sensor technologies used for fog detection

Fog detection needs specialized equipment that can notice what human eyes miss. Modern roadway sensors use various technologies to measure visibility and detect dangerous conditions before accidents happen.

1. Visibility sensors and forward scatter method

Forward scatter visibility sensors are now the most common technology to detect fog on roadways. These devices measure scattered light from atmospheric particles that pass through a defined sample volume. The sensors have a projector that emits pulsed light in a cone-shaped beam. A detector sits 33 to 70 degrees from the projector axis. This setup will give a clear reading as the detector only senses light scattered by fog particles rather than direct beam light.

Modern forward scatter technology detects and analyzes current precipitation to identify type, intensity, and visibility with ranges up to 100 km (62 mi) Meteorological Optical Range. These sensors are sensitive enough to detect precipitation from the first droplets and quickly respond to meteorological visibility changes from 1m to 100km.

The sensor’s height plays a crucial role. You need to mount visibility sensors 6.5 to 10 feet above ground to match what drivers see on the road.

2. Road surface sensors for moisture and temperature

Road surface sensors come in two main types: active and passive. Active sensors create and emit signals to measure radiation reflected by targeted surfaces. Passive sensors detect energy that radiates from external sources.

Passive pavement temperature sensors usually sit buried in road surfaces. Their thermal properties match the surrounding pavement, so they heat and cool at similar rates. Active pavement sensors can cool their surface below ambient air temperature to spot moisture formation.

EcoSentec’s product line shows how far surface condition detection technology has come. Their multispectral measurement technology measures ice, snow, and water thickness on roadways with precision. The ES-S110 Road Surface Condition Detector offers resilient solutions when buried sensors won’t work. The ES-S120 Non-Contact Road State Sensor takes things further by avoiding road damage through remote sensing technology.

3. LIDAR and laser-based visibility meters

LIDAR systems can detect fog remotely and increase the capabilities of traditional sensors for aviation, ports, and critical infrastructure. These systems can spot incoming fog banks up to 15km away – this is a big deal as it means that they outperform traditional methods.

LIDAR technology sees through fog better than cameras or human vision. These systems use the same operational principle for detection and can monitor total cloud cover in three dimensions.

4. Cameras and image-based detection systems

Camera-based fog detection offers a budget-friendly approach by using existing infrastructure. Modern systems work with two main clues: they calculate visibility distance through camera projection equations and detect blurring from fog.

New approaches utilize machine learning techniques more often. Deep learning shows great potential since it uses global image features instead of specific road elements that traffic might hide. This technology enables immediate fog detection and sorts it into five categories based on visibility distance ranges.

5. Atmospheric transmissometers and their role

Transmissometers measure how light gets blocked when passing through a known air volume. Advanced dual technology visibility sensors combine direct attenuation and forward scatter technologies to measure airborne particle sizes more accurately.

Modern calibration devices match the 35-year-old “FAA golden standard transmissometer” at FAA testing facilities. This calibration ensures measurements stay consistent across different sites.

These technologies work together to create detailed visibility monitoring systems. Many modern sensors combine multiple detection methods to improve accuracy in all weather conditions.

EcoSentec’s sensor lineup for road visibility monitoring

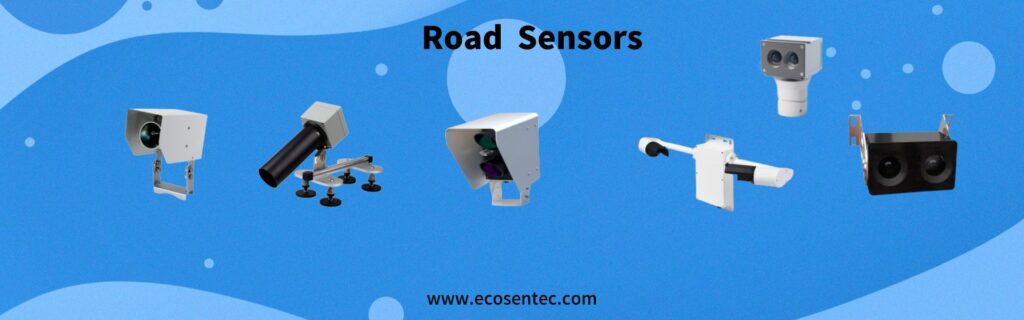

EcoSentec leads road safety breakthroughs with its detailed lineup of intelligent sensors that tackle visibility challenges. Their advanced suite uses multispectral remote sensing technology to deliver precise measurements in challenging environmental conditions.

ES-S110 Road Surface Condition Detector

The ES-S110  is a breakthrough solution we developed for scenarios where traditional buried sensors are impractical or impossible to install. This advanced detector uses multispectral measurement technology to gage ice, snow, and water thickness on roadways accurately. Its resilient design makes it perfect for critical infrastructure points that need reliable monitoring without disrupting existing road structures.

ES-S120 Non-Contact Road State Sensor

The ES-S120 takes roadway monitoring further with sophisticated non-contact remote sensing capabilities. This versatile sensor does more than detect ice, snow, and water presence and thickness. It actively monitors heavy fog, rain, snow, and other adverse weather phenomena that affect traffic safety. The sensor’s ability to function without physical contact makes it perfect for road weather stations, which reduces physical interference with traffic and infrastructure.

ES-S130 Vehicle-Mounted Road Surface Condition Detector

The ES-S130, maybe even the most innovative of EcoSentec’s products, turns moving vehicles into dynamic data collection platforms. This sensor, designed for mobile applications, provides up-to-the-minute road condition information while vehicles are moving. It measures the type and total thickness of ice, snow, and water. This creates a mobile network of sensors that continuously map road conditions across transportation networks.

Key benefits across the EcoSentec product line

EcoSentec’s product lineup offers several core advantages that distinguish these sensors from conventional monitoring systems:

• Exceptional accuracy through advanced multispectral remote sensing technology

• Flexible deployment options for fixed roadside installations, non-intrusive setups, and mobile monitoring platforms

• Real-time detection of hazardous surface conditions and complex weather phenomena

• Useful data that supports proactive traffic safety measures and optimized winter maintenance strategies

EcoSentec’s all-encompassing approach to visibility and road condition monitoring gives transportation authorities powerful tools to improve safety during adverse weather events, including dangerous fog conditions.

How sensor data improves real-time fog detection

Smart data processing turns raw sensor readings into life-saving information when fog hits. The systems need strategic placement, fine-tuning, and proper data handling to work accurately in a variety of weather conditions.

Sensor placement and calibration for accuracy

The right placement is vital to data reliability. The best results come when visibility sensors are mounted 6.5 to 10 feet above ground level to match what drivers see. This height ensures measurements reflect actual driver conditions rather than readings from higher up.

Modern systems use a hybrid grading method that has both coarse and precise calibration steps. The system parameters get a rough calibration first. A more detailed process follows to estimate and fix any remaining errors through specialized filtering.

Data fusion from multiple sensors

Mixing data from different sensor types makes detection more reliable. Each sensor technology performs differently as visibility drops:

• Cameras give detailed information but have trouble in low light

• Active sensors like LIDAR work better in poor lighting

• Longer wavelength sensors keep working even in bad conditions

Today’s systems use three main ways to blend data based on processing needs:

1. Low-level fusion (LLF): Works with raw data and gives few false positives but needs lots of computing power

2. Middle-level fusion (MLF): Gets features first and balances processing needs with quality

3. High-level fusion (HLF): Uses preprocessed lists that need less computing power and scale well

Integration with traffic management systems

Smart Traffic Management Systems (STMSs) use many parts that collect and handle live sensor data. These advanced networks use wireless detection to revolutionize traffic monitoring and provide better coverage with exact observations.

These systems need clean data to work well. They remove duplicates, conflicting information, and noise while keeping data accurate.

Alerts and automated responses based on sensor input

The automated systems trigger response protocols when visibility drops below set levels. LIDAR systems look at raw histogram data to spot fog and switch modes automatically.

The system responds by:

• Showing weather warnings on variable message signs

• Lowering speed limits automatically

• Sending alerts to maintenance teams for quick action

This comprehensive approach helps drivers get timely warnings and lets authorities manage traffic flow actively in dangerous conditions.

Challenges and limitations of current sensor systems

Roadway sensors play a vital role in safety systems, yet they face several challenges in ground applications. These limitations affect their reliability and ability to work, particularly in harsh conditions when detection matters most.

Environmental interference and false positives

The weather often undermines the very systems designed to detect it. LiDAR systems, though advanced, struggle in rain, fog, and smoke. This limits their effectiveness for perception algorithms. Small things like insects and spider webs near optical sensing parts can trigger false readings. Some sensors must balance between detecting actual threats and avoiding false alarms. The sensor’s alignment suffers when vehicle bodies expand and contract due to temperature changes.

Maintenance and calibration issues

Accuracy demands regular system maintenance. As one expert notes, “Even the most precise gyroscope will drift—not because it’s broken, but because the world around it changes”. Routine maintenance should check connectors, test power line integrity, and monitor internal bias. Camera lenses exposed to weather need regular cleaning. This often leads to lane closures.

Conclusion

Modern roadway sensors have changed how we detect and respond to dangerous fog on highways. These sensor technologies work better than old methods because they are more precise and reliable. Different systems like forward scatter visibility sensors, LIDAR systems, and image-based detection create strong monitoring networks that protect drivers every day.

EcoSentec leads this tech revolution with their state-of-the-art sensor lineup. Their ES-S110 Road Surface Condition Detector delivers great accuracy where buried sensors don’t work well. The ES-S120 monitors both surface conditions and weather like fog without physical contact. The ES-S130 takes things further by turning vehicles into mobile data collectors that map road conditions across transportation networks.

Some problems are still around. Environmental interference, upkeep needs, and setup costs make widespread adoption harder. All the same, these advanced systems’ benefits are nowhere near their drawbacks. Live fog detection lets traffic managers take quick action through automatic warning systems and timely maintenance that substantially cuts down accident risks.

Safe roads will depend on state-of-the-art sensor technology. Multispectral remote sensing combined with smart sensor placement and data fusion techniques will build even better monitoring networks. These technologies will become more available and blend with existing infrastructure to create safer roads for travelers, whatever the weather brings.
