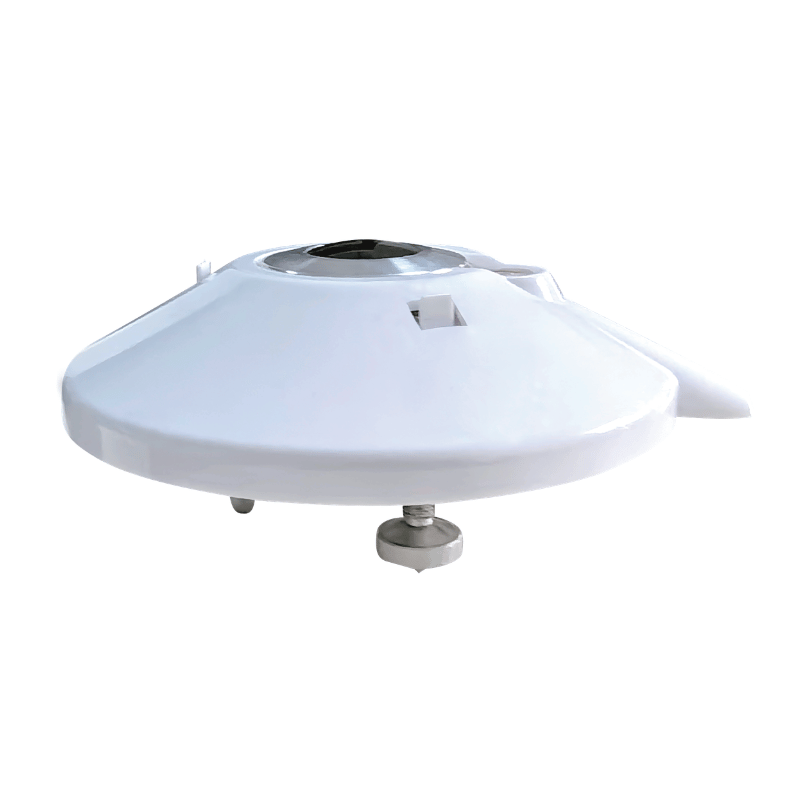

ES-S228L longwave radiometer

The ES-S228L longwave radiometer, also known as an Earth radiometer, is primarily used to measure infrared radiation from the atmosphere and Earth’s surface in the wavelength range of 3–50 μm. It is applied in fields such as soil evapotranspiration studies, radiation balance studies in meteorology, radiative heat exchange studies, and monitoring trends in highway pavement conditions.

The ES-S228L longwave radiometer, also known as an Earth radiometer, is primarily used to measure infrared radiation from the atmosphere and Earth’s surface in the wavelength range of 3–50 μm. It is applied in fields such as soil evapotranspiration studies, radiation balance studies in meteorology, radiative heat exchange studies, and monitoring trends in highway pavement conditions.

Application

ES-S228L longwave radiometer can be widely used in soil meteorology for evapotranspiration studies, meteorological studies for radiation balance, radiative heat exchange studies in radiative energy applications, and monitoring trends in highway pavement conditions.

Spectral range

3 - 50 u m

Measurement range

0~ 2000W/m2

Signal output

RS485, 0-20mv

Sensitivity

2-10 uV/W•m-2

Response time

≤10 seconds (99%)

Internal resistance

≤30Ω

Annual stability

±2%

Nonlinearity

±2%

Temperature coefficient

≤±2%(-40°C ~ 80°C)

Visual accuracy

180°

Operating ambient temperature

-40°C ~ +80°C

Operating ambient humidity

0 ~ 100%RH

Weight

About 0.8kg
