Precision in Solar Monitoring: Introducing the ES-S228TM Automatic Tracking Solar Radiation Sensor

ES-S228TM Automatic Tracking Solar Radiation Sensor main

In today’s era of sustainable energy transition, precise solar radiation monitoring has become increasingly crucial. Among the most sophisticated instruments in this domain is the automatic tracking solar radiation sensor — an intelligent device that traces the sun’s path throughout the day to deliver optimal solar irradiance measurements. These tracking sensors offer superior accuracy and comprehensive data collection compared to traditional fixed sensors, which often face challenges with angular deviations and incomplete data capture due to varying solar positions.

What Is an Automatic Tracking Solar Radiation Sensor?

An automatic tracking solar radiation sensor represents a sophisticated system that continuously adjusts its position to maintain alignment with the sun. Utilizing a dual-axis tracking system, these advanced instruments excel at measuring both direct normal irradiance (DNI) and global horizontal irradiance (GHI) with remarkable accuracy. They play vital roles in:

Solar power plant monitoring
Photovoltaic (PV) system performance analysis
Meteorological research
Environmental and climate data collection

Primary advantages of automatic tracking systems include:

Superior measurement precision through optimal solar alignment
Enhanced effectiveness in solar energy analysis and predictions
Dependable long-term data acquisition for scientific and industrial purposes

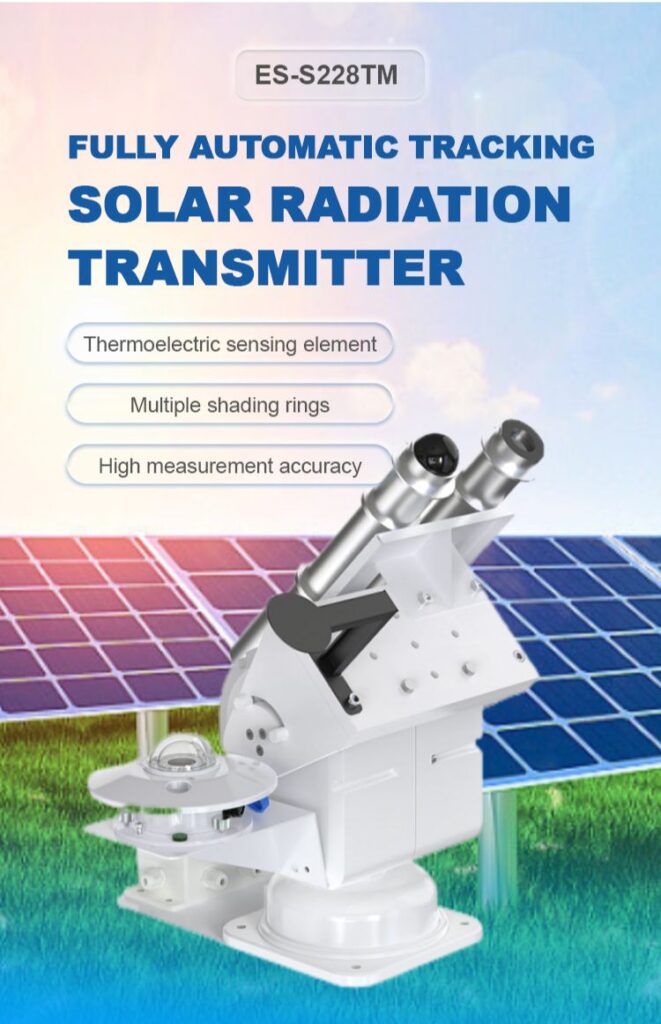

EcoSentec’s Solution: The ES-S228TM Automatic Tracking Solar Radiation Sensor

At EcoSentec, we’ve engineered a premium, industry-ready solution that merges precise solar tracking with robust durability — the ES-S228TM.

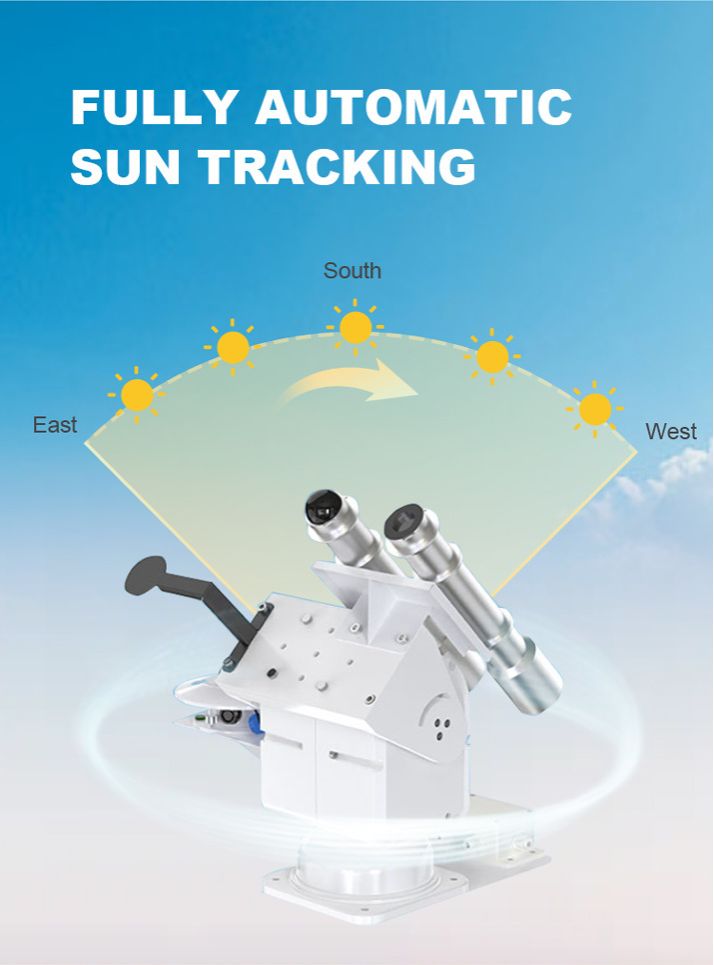

🌞 Dual-Axis Automatic Sun Tracking

The ES-S228TM incorporates an advanced dual-axis tracking system that perpetually aligns with solar movement. Achieving a tracking precision of <0.5°, it guarantees optimal pyrheliometer orientation for direct radiation measurement.

⚙️ Integrated High-Accuracy Sensors

The configuration features:

A first-class pyrheliometer for measuring direct solar irradiance
A first-class pyranometer for global solar irradiance

These sensors meet WMO and ISO standards, delivering premium data quality for research and industrial applications.

🌦 Built for Harsh Environments

Engineered for sustained outdoor deployment, the ES-S228TM maintains reliable operation in challenging conditions:

Temperature range: -40°C to +85°C
Humidity: 0–100% RH
Rain sensor & automatic shutters protect optical components and ensure consistent performance during adverse weather.

🔌 Flexible Output & Communication

System integration is straightforward with:

RS485 (Modbus-RTU) digital interface
Analog outputs: 0–5V or 4–20mA
12–24V DC low power operation

🛠 Smart Features

Automatic leveling mechanism for simplified installation and setup
Continuous performance monitoring with advanced diagnostic capabilities
Space-efficient and robust construction enabling quick field deployment

Applications of the ES-S228TM

The ES-S228TM serves multiple professional sectors effectively:

Solar Power Facilities – Delivering continuous solar input analysis for maximizing energy generation
Weather Monitoring Stations – Gathering precise irradiance measurements for atmospheric and climate research
Academic and Research Institutions – Enabling detailed solar energy investigations and environmental studies
Calibration and Testing Centers – Operating as a benchmark instrument for solar sensor verification

Why Choose EcoSentec?

At EcoSentec, we combine cutting-edge sensor technology with unwavering quality standards. The ES-S228TM exemplifies our extensive experience in environmental monitoring, offering clients:
