Wind Speed Measurement Made Easy: From Basic Tools to Pro Techniques

The incredible 253 mph winds of Tropical Cyclone Olivia might make you wonder about how meteorologists capture such extreme measurements. Wind speed measurement has evolved dramatically from simple observations to sophisticated scientific instruments. Mount Washington Observatory recorded the second-highest wind speed at 231 mph back in 1934.

Meteorologists typically measure wind speed using an anemometer positioned 10 meters above sea level. This instrument has served as the life-blood of wind measurement for decades. Wind speed tends to increase with height and responds to factors like ground roughness and surrounding obstacles. Reliable measurements require level terrain that stays clear of major obstacles within 300 meters.

Let’s explore everything from simple techniques to professional methods that help measure wind speed accurately. Weather enthusiasts and professionals alike will find valuable insights about tools and techniques that deliver dependable readings.

Understanding Wind Speed and Its Impact

Air moves from high-pressure to low-pressure areas, and this movement creates what we call wind. The pressure difference at any location directly affects wind speed – bigger differences lead to faster winds.

Wind behavior depends on three main forces:

• Pressure Gradient Force – The difference in atmospheric pressure that generates wind movement

• Coriolis Force – Created by Earth’s rotation, deflecting winds rightward in the Northern Hemisphere and leftward in the Southern Hemisphere

• Frictional Force – Maximum at the surface, generally extending up to 1-3 km in elevation

These forces combine to create intricate wind patterns. To name just one example, winds in low-pressure areas blow cyclonically (counterclockwise in the Northern Hemisphere) because of these combined forces.

Wind speed measurements commonly use knots (1 knot = 0.51 m/s = 1.15 mph), though the World Meteorological Organization recommends meters per second. Wind changes faster over brief periods, so measurements happen every 0.25 seconds to capture gust strength.

Francis Beaufort’s scale offers a quick way to estimate wind speed through observation. Created in 1805, this scale goes from 0 (calm conditions) to 12 (hurricane force). Trees lose twigs and walking becomes difficult at force 8 (39-46 mph).

Wind speed affects many sectors beyond weather forecasting. Renewable energy output drops sharply with wind changes—a 10% drop in wind speed leads to 30% less energy production. High winds also cause clear air turbulence and change flight durations.

Global wind patterns continue to shift due to climate change. Research from 1978 to 2010 showed wind speeds dropping by 2.3% each decade, but recent data (2010-2019) showed an increase from 7 mph to 7.4 mph. All the same, the Intergovernmental Panel on Climate Change expects average annual wind speeds could drop up to 10% by 2100[53]. This could trigger “wind droughts” that disrupt power generation and drive up electricity costs.

8 Wind Speed Measurement Instruments Explained

The rise of wind measurement technology has brought us tools that measure wind with amazing precision. Let’s get into the main tools that meteorologists and engineers now use to capture accurate wind data.

Wind Vanes show wind direction, and newer models come with wind cups that track speed too. These sensitive tools can spot even tiny changes in direction with great accuracy when winds are slow.

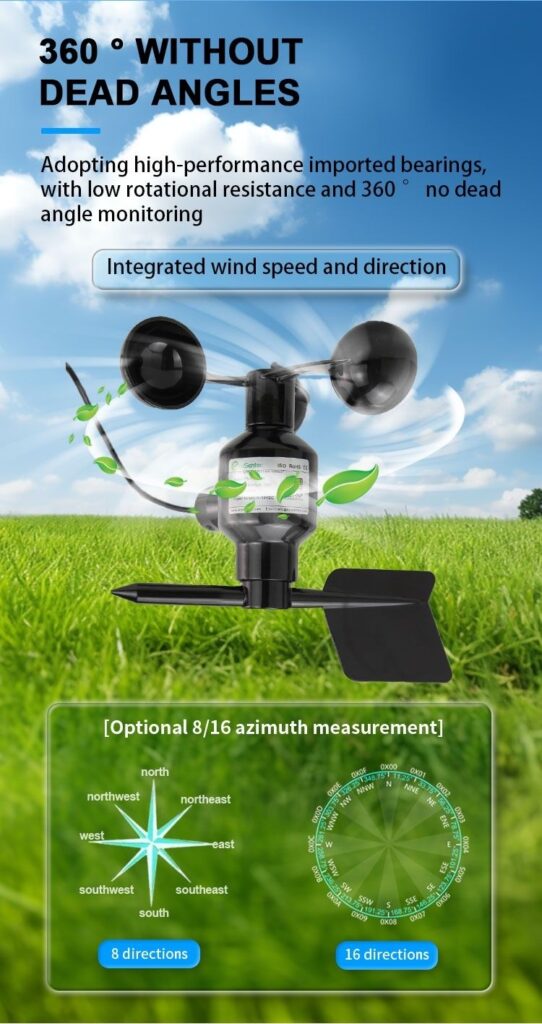

Cup Anemometers are the life-blood of wind measurement. They have three hemispherical cups on horizontal arms. John Patterson’s three-cup design from 1926, which was improved in 1935, gives almost linear readings with errors below 3% for winds up to 60 mph. These tools now serve as the standard for wind resource assessment studies.

Vane Anemometers have propeller blades that spin at speeds matching wind velocity. The axis must stay parallel to wind direction, unlike cup models. These tools blend great sensitivity with strong resistance to corrosion and need little maintenance.

Hot-Wire Anemometers use a very fine wire (several micrometers in diameter) heated above surrounding temperature. Wind cooling creates measurable changes in wire resistance. They shine at low-velocity readings (down to 0.5 m/s) with about ±5% accuracy. Their quick response makes them perfect for studying turbulent flows.

Handheld Wind Meters give us portable options for field measurements. Advanced models like the Kestrel 1000 can measure winds up to 135 mph using a special impeller on a sapphire jewel bearing.

Pitot Tube Anemometers find wind speed by measuring differential pressure. They work best with high velocities up to 80 m/s, especially in tight spaces and pipe systems.

Ultrasonic Anemometers calculate wind velocity using sound waves between transducer pairs. They have no moving parts, so they need little maintenance and respond quickly to changing conditions.

Laser Doppler Anemometers measure without contact by detecting frequency shifts in laser light that bounces off airflow particles. Since they sit outside the flow, they don’t interfere with measurements, which makes them valuable for wind tunnel testing.

Choosing the Right Wind Speed Measurement Device

Choosing the right wind speed measurement device needs you to think over several significant factors. Your technology choice can dramatically affect data reliability and operational efficiency.

The basic differences between mechanical and ultrasonic sensors set them apart. Mechanical anemometers depend on physical components like cups or vanes that must move to register changes. Ultrasonic sensors work differently – they have no moving parts and calculate wind by measuring sound wave travel time between transducers.

Mechanical sensors cost less upfront and have proven reliability in simple weather monitoring. They are easy to adjust but need frequent maintenance because moving parts wear down over time. These sensors also take longer to respond to rapid wind changes and need several seconds to register directional changes during storms.

Ultrasonic anemometers deliver instant measurements with pinpoint accuracy. They shine at detecting quick directional changes and gusts. Their reliable performance extends to harsh environments including heavy precipitation, severe icing, and offshore conditions. This outstanding performance convinced the National Weather Service to upgrade 883 Automated Surface Observation Systems with ultrasonic sensors.

Your device selection should focus on these vital factors:

• Measuring range: Pick an instrument with a suitable range for your needs—some excel at low-speed measurements while others are designed for high-wind environments

• Accuracy: Critical applications like aviation or wind energy demand higher precision devices

• Environmental conditions: The typical and extreme conditions your device faces matter

• Integration capabilities: Your device must work with existing systems and data loggers

• Budget considerations: The purchase price needs balancing against long-term maintenance costs

Traditional anemometers work well for budget-friendly setups in mild conditions where slight data delays don’t matter. Critical applications that need bulletproof reliability—such as airports, wind farms, or remote sites—benefit from ultrasonic devices. Their higher initial cost pays off through minimal maintenance and superior performance in extreme conditions.

Note that a quality commercial grade wind direction instrument typically lasts 3-5 years under normal conditions. Your long-term planning should include these replacement costs.

Conclusion

Wind speed measurement has evolved from Francis Beaufort’s visual scale to state-of-the-art ultrasonic and laser-based technologies. This piece explores how wind represents air flowing from high to low-pressure areas. Three primary forces govern this flow and create complex patterns across our planet.

These patterns have implications beyond weather forecasts. Wind speed plays a crucial role in renewable energy production. Small decreases in wind speed can lead to significant reductions in power generation. Global wind patterns continue to change due to climate change. This creates “wind droughts” that could challenge our energy infrastructure in the coming decades.

Your specific needs determine which measurement instrument works best. Traditional cup anemometers are reliable and affordable for simple applications. Ultrasonic sensors excel in extreme conditions without moving parts that need maintenance. The right choice depends on measuring range, accuracy needs, environmental conditions, and budget.
