UV Sensors: What They Are, How They Work, and Why They Matter

We don’t see ultraviolet (UV) light with the naked eye, but its effects are all around us—from sunburns on a summer day to the invisible security features printed on our currency. And when it comes to measuring and monitoring this powerful form of radiation, UV sensors are the go-to tools. But how do they actually work, and what makes them so essential across different industries?

Let’s break it down in plain English.

What Exactly Is a UV Sensor?

In short, a UV sensor is a device that detects ultraviolet radiation. It picks up on the UV rays we can’t see and converts that energy into a readable electrical signal. This can then be used to monitor UV levels in the environment, detect the presence of certain materials, or even help operate equipment that relies on UV exposure.

Depending on the application, UV sensors can measure the intensity, wavelength, or presence of UV light.

How Do UV Sensors Work?

UV sensors work based on a pretty cool principle: when UV light hits certain materials, it excites electrons. That movement creates an electrical response that the sensor measures.

There are two main types of UV sensors, based on how they detect the light:

1. Photodiode UV Sensors

These are the more precise kind. They use a photodiode—a semiconductor device that generates a current when exposed to light. The brighter the UV light, the more current it produces. This current is then turned into a signal you can measure.

Photodiode sensors are widely used in scientific and industrial applications where accuracy matters. If you’ve ever looked into solar panels or high-end UV monitors, you’ve likely come across this technology.

2. Photoresistor UV Sensors

These are a bit simpler. Instead of measuring a current, they detect changes in resistance when UV light hits them. They’re less accurate but cheaper and good enough for applications where you just need to know whether UV light is present or not.

Not All UV Light Is the Same

UV light falls into three main categories based on its wavelength:

  • UVA (320–400 nm): Least harmful and most common in sunlight. Think tanning beds and skin-aging rays.
  • UVB (280–320 nm): Stronger and more dangerous; linked to sunburn and skin cancer.
  • UVC (100–280 nm): The most powerful and usually blocked by the atmosphere. But in controlled environments, it’s used for disinfection (like in air purifiers and sterilization chambers).

Accordingly, UV sensors are often designed to detect specific ranges of this spectrum, depending on what you’re measuring.

EcoSentec UV Sensors

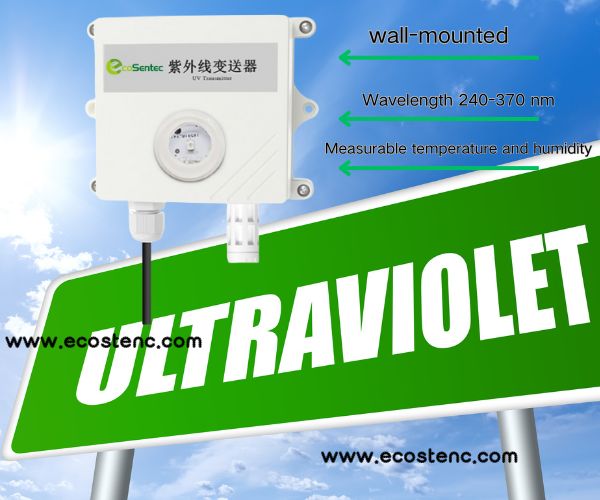

ES-S320 Ultraviolet UV sensor

ES-S320 Ultraviolet UV sensor

ES-S320 UV sensor is based on the principle that photosensitive elements convert UV rays into measurable electrical signals to achieve online monitoring of UV rays.

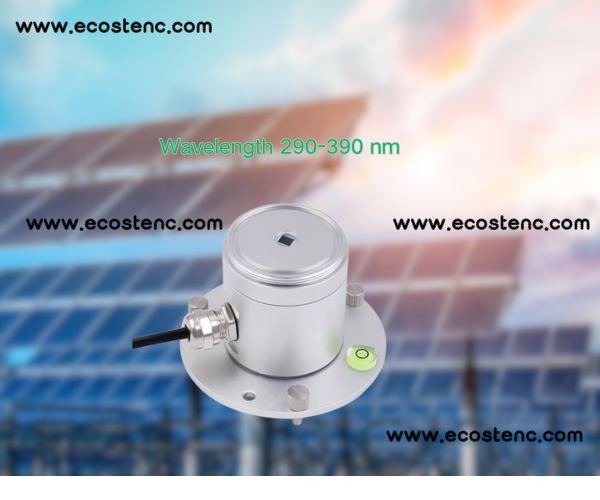

ES-S228V Ultraviolet sensor

 This product is based on the principle that a photosensitive element converts ultraviolet light into a measurable electrical signal to realize online monitoring of ultraviolet light.

ES-S228V Ultraviolet sensor


    Real-World Applications: Where You’ll Find UV Sensors

    UV sensors might not be on everyone’s radar, but they’re hard at work in a surprising number of fields:

    Environmental Monitoring

    UV sensors track solar radiation levels to study the health of the ozone layer or assess sun exposure risks. This data feeds into public UV index warnings.

    Medical Treatment

    In phototherapy (used to treat skin conditions like eczema or psoriasis), UV sensors help deliver precise doses of UVB light to patients without overexposure.

    Water and Air Purification

    UVC radiation kills bacteria and viruses. Sensors ensure the correct intensity is delivered in UV-based sterilization systems.

    Fire and Arc Detection

    UV sensors can spot electrical arcs or flames by detecting the UV radiation they emit—crucial for early-warning safety systems in industrial or utility settings.

    Banknote Authentication

    Ever wondered how machines detect fake currency? Many use UV sensors to check for invisible ink or anti-counterfeit features that glow under UV light.

    Installation and Setup: Things to Keep in Mind

    When installing a UV sensor, here’s what matters:

    • Location: Place it somewhere unobstructed, where it can receive direct UV exposure without interference.
    • Height: Some sensors work best at specific heights—especially those used in weather stations.
    • Wiring: Secure the cables properly, shield them from moisture, and avoid crossing power lines that might cause interference.
    • Calibration: Like any sensor, UV detectors need occasional calibration to stay accurate.

    Why UV Sensors Keep Getting Better

    Modern UV sensors are way ahead of their early counterparts. They’re more sensitive, longer-lasting (over 100,000 hours in some cases), and capable of delivering fast, real-time data with digital outputs. Some even come with built-in software that generates graphs and logs for easy monitoring.

    As tech continues to improve—especially in related fields like solar energy and optical sensors—UV sensing technology is benefiting too.

    Final Thoughts

    UV sensors may not get the spotlight, but they play a vital role in everything from climate science to everyday gadgets. Whether they’re helping to prevent sunburn, verify a hundred-dollar bill, or control a sterilization lamp, they’re a quiet force making the invisible visible.

    Want to learn more or request a custom integration? Contact EcoSentec to explore how our UV sensors can power your next solution.
