Thermoelectric radiation sensor

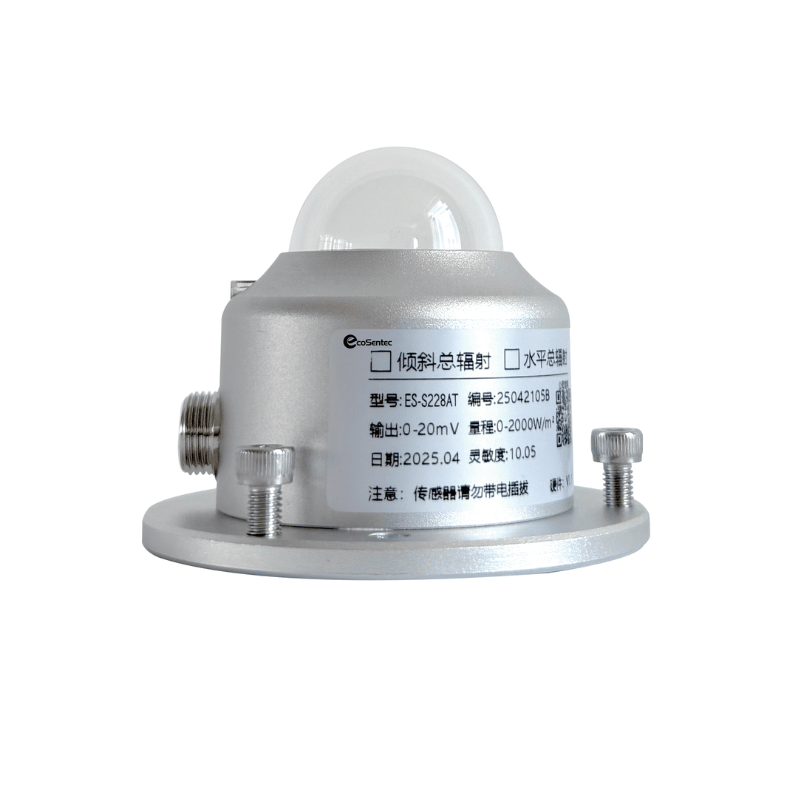

ES-S228AT Thermoelectric radiation sensor (Class C)

The ES-S228AT thermoelectric total radiation sensor is a shortwave total radiation sensor used for solar radiation observation. It is a Class C total radiation sensor conforming to the latest ISO 9060 and WMO technical standards.

Categories , Tags ,
GET A QUOTE

The ES-S228AT thermoelectric total radiation sensor is a shortwave total radiation sensor used for solar radiation observation. It is a Class C total radiation sensor conforming to the latest ISO 9060 and WMO technical standards.

The ES-S228AT thermoelectric solar total radiation sensor measures the irradiance received on the Earth’s plane, primarily used to measure total solar radiation in the spectral range of 0.285-3 μm. When placed horizontally downwards, it can measure reflected radiation; with a diffraction-shielding ring, it can measure scattered radiation.

Spectral Range

285-3000nm

Measurement Range

0 ~ 2000W/m?

Power Supply

DC6~30V (0~20mV equipment does not require power supply)

Signal Output

0~20mV / RS485/4 ~ 20mA

Sensitivity

7-14m V/w.m=2

Response Time

≤10 seconds (99%)

Internal Resistance

≤302

Annual Stability

‡2% ±2%

Nonlinearity

≤5% Bubble level

Accuracy

-40°C ~ 80°C

Horizontal Calibration

0 ~ 100%RH

Operating Temperature

Approx. 0.5kg

Operating Humidity

Standard configuration: 3m Replacement every two years

Weight (excluding cable)

285-3000nm

Instrument Cable Length

0 ~ 2000W/m?

Recommended Calibration Cycle

DC6~30V (0~20mV equipment does not require power supply)
