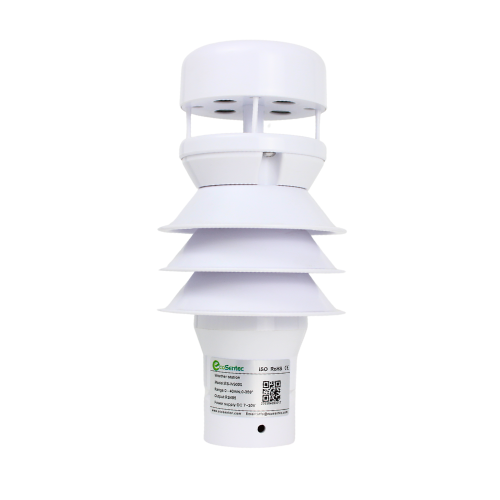

ES-W9000 micro automatic meteorological station

ES-W9000 micro automatic meteorological station is a civil integrated meteorological station independently developed by our company, which can measure multiple meteorological parameters. It can simultaneously measure atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, rainfall, radiation, illuminance, UV radiation, PM2.5 and PM10 and other meteorological elements.

ES-W9000 micro automatic meteorological station is a civil integrated meteorological station independently developed by our company, which can measure multiple meteorological parameters. It can simultaneously measure atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, rainfall, radiation, illuminance, UV radiation, PM2.5 and PM10 and other meteorological elements.

ES-W9000 uses low-power chip, and the power consumption is only 1.7w. Due to the adoption of new technology and new process, the structure is more compact and compact. Mini visibility detection module can also be selected, which is very suitable for smart city control system. The shell is ABS engineering plastic, and according to the user’s requirements, all the test parameters can be selected and combined at will, completely customized.

ITEMS

Range

Accuracy

Resolution

Wind speed

0-40m /s

± 5%

0.1

Wind direction

0-359 °

±3 °

1 °

Temperature

- 40 ℃ - + 80 ℃

± 0.5℃

0.1 ℃

Humidity

0-100%

±5%

1

Atmospheric pressure

300- 1100hPa

±1

0.1hPa

Rainfall

0-200mm/hr

± 5% (@ wind speed ≤ 5m/s)

0.01mm

Solar radiation*

0-1750 W/m2

±5% (@ vertical irradiation)

0.1 W/m2

Illuminance*

0-200000lux

±4% (@ vertical irradiation)

0.1 lux

UV radiation*

(100-200K) μ W/cm 2

±10%

1 μ W/cm 2

PM1.0/PM2.5/PM10(dust)*

0-1000μg/m3

±10%

1μg/m3

Visibility*

20-10000m

±15%

M

Power supply

VDC: 7V-30V (Heating Version start 12VDC) ; 0.7W ( MAX )

Digital output

RS232, RS485, SDI-12,4-20mA or 0-5V

Baut rate

4800 - 19200

Communication

ModBus,NMEA-0183,ASCII

Size

Φ84mm×(120-298)mm  /  0.38kg

Material

White/ASA/ABS

IP protection

IP65 or customized
