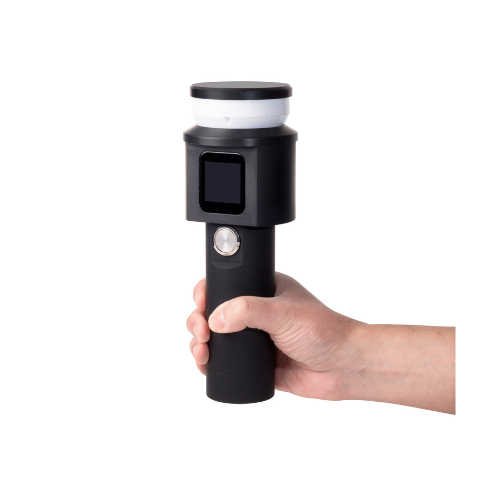

ES-V226H Handheld visibility meter

ES-V226H Handheld Visibility Tester adopts a unique testing method to draw air into a specially designed closed air sampling chamber, which can ensure real-time exchange with the outside air and is not affected by the external space environment. It can also measure normally in a small room.

ES-V226H Handheld Visibility Tester adopts a unique testing method to draw air into a specially designed closed air sampling chamber, which can ensure real-time exchange with the outside air and is not affected by the external space environment. It can also measure normally in a small room.

The handle is made of aluminum alloy, which is sturdy and convenient for users to hold with one hand. 3 18650 rechargeable lithium batteries can be installed inside to ensure that the visibility instrument can work continuously for more than 72 hours.

It comes with a 2.5-inch touch screen to display measurement data in real time. Built-in Bluetooth module, dedicated APP software, real-time reception of test data on the mobile phone; data can also be synchronized to the Internet of Things platform in real time for storage or analysis, which is particularly suitable for field inspections.

Measuring range

Visibility (MOR): 20 - 10000 m

Data transmission

Bluetooth module; Wireless transmission module: Mobile 4G DTU (optional)

Data display

2.5-inch touch control display screen/mobile app software display; IoT client display interface (optional)

Power supply

Internal rechargeable lithium battery (continuous operation for more than 72 hours)/charging adapter

Operating temperature

-10 ... +65 °C

Operating humidity

10 – 100% RH

Dimensions

230*83mm

Weight

less than 0.8kg (without tripod)
