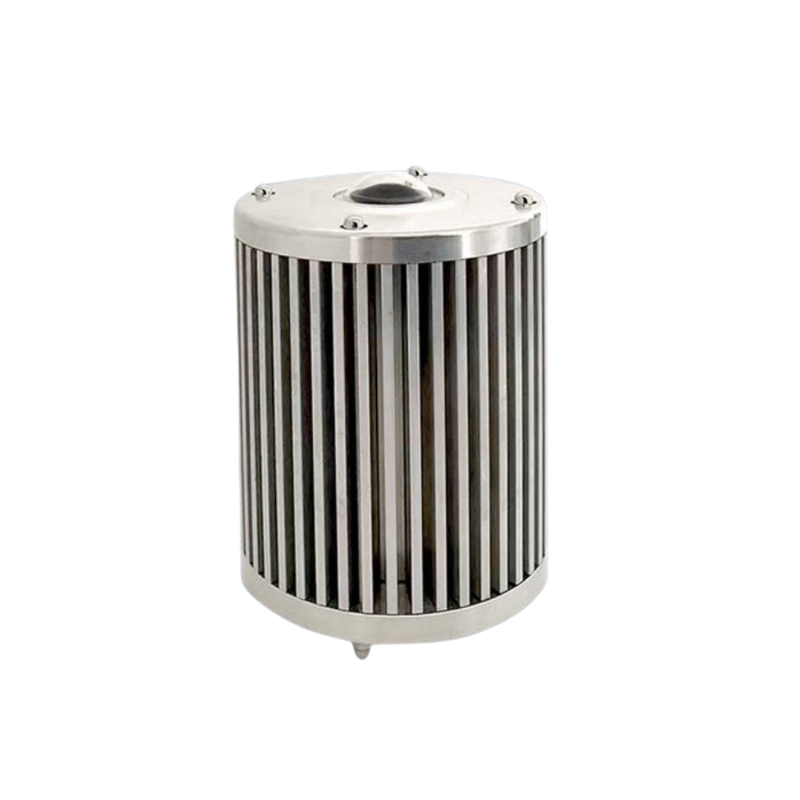

Name: ES-CCM Cloud Cover Monitor - EcoSentec
Price: 500.00
Availability: InStock

ES-CCM cloud cover monitor is a device used for automatically and continuously monitoring and recording cloud cover and distribution. Using a 4K fisheye lens combined with professional optical sensing technology, it can calculate and analyze the transmittance of sunlight through clouds in real time. Utilizing AI algorithms, it identifies cloud and clear-sky areas and automatically removes obstructions, accurately measuring cloud cover and calculating cloud coverage percentages and levels. Output data such as clear-sky percentage, cloudy percentage, cloud cover level, and percentage of few clouds.

The cloud cover monitor is suitable for applications in meteorological observation, environmental monitoring, climate research, weather forecasting, agricultural monitoring, and solar power generation, helping users to more accurately understand and predict weather and its impact on solar energy utilization.

Product Parameters	Parameter Description
Main chip	Dual-core ARM Cortex A55 @ 1000MHz
Computing power	2.5TOPS INT8
Storage	8GB
Memory	2GB
Automatic restart function	Supports automatic restart after power failure/accidental failure
Imaging sensor resolution	4K 1200W 4000*3000 pixels
Focal length	1.5mm @F2.0
Field of view	Horizontal field of view: 210° Vertical field of view: 210° Diagonal field of view: 210°
Wide dynamic range	WDR enhancement technology
Signal-to-noise ratio	≥50dB
Optical glare suppression system	supported
Requires sun shading	Not required
Satellite positioning	• 1-10Hz positioning update rate • Supports A-GPS services such as AssistNow Online and AssistNow Offline • Hybrid engine for GPS, BeiDou, GLONASS, (WAAS, EGNOS, MSAS, GAGAN) • Three-channel radio frequency, supporting GPS+BDS (default), BDS+GLONASS, and GPS+GLONASS output
Satellite timing	Supported
Sampling frequency	60s - 86400s
Data storage	200000pcs
Data output	Status indicators, range 0~1 Cloud cover level, range 1~5 Current cloud cover, range 0~100% Clear sky percentage, range 0~100% Few clouds percentage, range 0~100% Partly cloudy percentage, range 0~100% Partly overcast percentage, range 0~100% Overcast percentage, range 0~100% Latitude data, range -90°~90° Longitude data, range -180°~180° Solar altitude angle, range -90°~90° Solar azimuth angle, range 0°~360° Oktas, range 0~8
Output method	RS485 Modbus format
Operating temperature/humidity	-40°C - 80°C/10% - 90%
Protection class	IP67
Power supply voltage	AC220V, DC12V
Current consumption	Max power consumption 417mA, average power consumption 300mA
Data/power lines	10m (standard configuration)
Pole erection	3.5m (optional)

ES-CCM Cloud Cover Monitor
