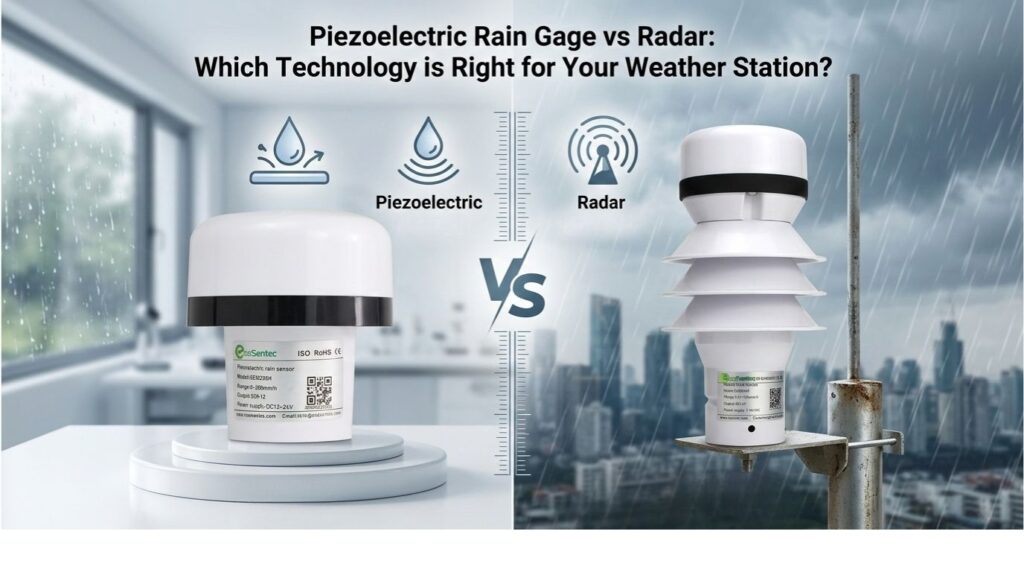

Piezoelectric Rain Gage vs Radar: Which Technology is Right for Your Weather Station?

A piezoelectric rain gage employs the piezoelectric effect to deliver fast response speeds and high measurement accuracy. It captures slight rainfall changes. Accurate rainfall data forms the foundation for flood prevention, water resource management and agricultural irrigation. But how does a rain gage measure rainfall when you have two distinct technologies to choose from? Radar systems employ 24GHz Doppler technology to distinguish precipitation types, yet they come with higher costs and complex installation requirements. In this piece, I’ll compare both technologies in terms of accuracy, performance, cost and applications to help you make the right choice for your weather station.

How Does a Rain Gage Measure Rainfall: Understanding the Two Technologies

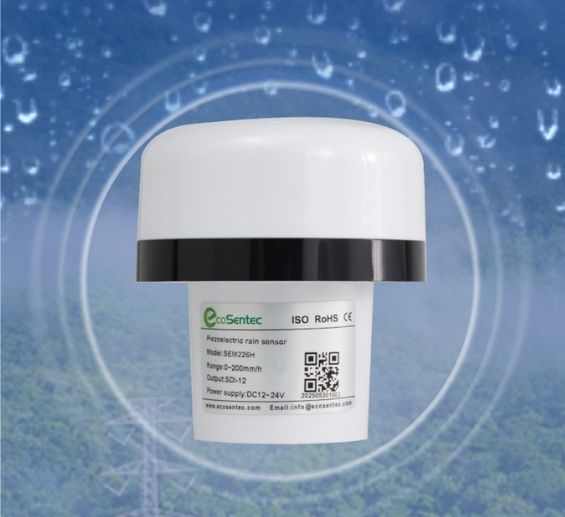

What is a Piezoelectric Rain Gage

Rain measurement begins with impact detection on a stainless steel surface approximately 90 mm in diameter. Raindrops strike this surface at terminal velocity and generate acoustic signals that a piezoelectric detector beneath the cover converts into voltage signals. The piezoelectric effect occurs when certain materials like quartz or PZT ceramics generate electric charges under mechanical stress.

Raindrop momentum drives the measurement process. Raindrops experience constant velocity when reaching the ground due to weight and air resistance. The system measures impact force using the conservation of momentum principle (P=mv) and calculates raindrop weight and precipitation amounts. Larger drops create stronger acoustic signals than smaller ones.

Signal processing converts these acoustic impacts into measurable data. The piezoelectric detector transmits charge output as voltage signals. These signals undergo filtering, amplification and algorithmic analysis to distinguish actual raindrops from noise sources such as wind, insects or debris. The system calculates total rainfall from the sum of individual voltage signals per unit time combined with the sensor’s known surface area. Rain intensity (mm/h), duration and accumulated rainfall appear in live output.

This technology operates without moving parts and reduces mechanical failure risks. The sensor supports digital outputs including RS-485 and SDI-12 protocols to connect weather stations and data loggers.

What is a Radar Rain Gage

Weather radar measures rainfall by transmitting radio waves into the atmosphere. These electromagnetic pulses bounce off precipitation particles. The returned signal estimates rainfall intensity and movement across large regions. The system does not physically collect water. Precipitation calculations come from reflectivity values based on particle size, type and distribution.

Radar systems determine rainfall intensity through signal reflectivity and map storm structure and movement. They track rainfall distribution across wide geographic areas. The spatial and temporal resolution depends on radar hardware, scanning strategy, distance from the radar, atmospheric conditions and correction algorithms. Smaller X-band radars provide higher temporal resolution due to increased rotational frequencies and shorter scanning cycles.

Radar provides instantaneous volumetric measurements across big areas, unlike point measurements. The 24GHz Doppler radar technology measures falling speed and particle size of precipitation droplets. This distinguishes between rain, snow and hail.

Key Differences in Measurement Principles

The fundamental difference lies in direct versus indirect measurement approaches. Rain gages physically collect rainfall at specific locations and provide ground truth to prove surface rainfall amounts right. This direct measurement makes them essential calibration references. Radar estimates precipitation from reflectivity values without physical collection and introduces potential risks.

Coverage area separates these technologies further. Rain gages deliver precise point measurements at ground level. Radar covers broad geographic regions and tracks storm progression. It identifies intensity changes across areas. Rain gage networks gain spatial context from radar imagery, while radar data requires correction using ground-based measurements.

Calibration dependency is different between systems. Radar relies on reflectivity values that must line up with actual surface measurements. Radar may overestimate or underestimate rainfall in specific regions without calibration against rain gage data. The calibration process compares radar-estimated totals to rain gage measurements and adjusts algorithms to reduce bias. It updates rainfall intensity models based on local conditions.

Accuracy and Performance Comparison

Measurement Precision in Different Rainfall Intensities

Accuracy varies based on rainfall intensity for both technologies. Piezoelectric sensors achieve measurement precision within ±4% accuracy under precipitation rates of 2 mm/min. But different instruments measuring the same rainfall conditions produce substantially different results. Studies comparing laser precipitation monitors, piezoelectric transducers, and particle imaging systems found median raindrop diameters measured by piezoelectric devices ranged from 0.82 to 1.40 mm. Particle imaging measured 1.27 to 2.20 mm for similar conditions. These discrepancies stem from differences in instrument design and measurement area. Raindrop size classification and internal algorithms also contribute.

Disdrometers underestimate total rainfall compared to traditional rain gages. Relative biases range from 2% to 29%. High rainfall intensities make these effects more pronounced than lower intensities. A single disdrometer may underestimate rain intensity by up to 70% due to limited measuring area. Radar systems face similar challenges. The complex nonlinear relationship between radar reflectivity and rainfall rate at surface level produces the largest errors. This usually causes precipitation underestimation. Overshooting of precipitation by the radar beam often gets substantial inaccuracies, especially at long ranges exceeding 60 nautical miles.

Response Time and Data Collection Speed

Piezoelectric sensors deliver fast response times without moving parts. Signal processing accuracy remains the main thing to think about for these devices. Data acquisition frequency affects understanding of high-intensity precipitation events. Analysis of weighing gages with 10-second versus 5-minute data acquisition frequencies revealed substantial information losses at 5-minute intervals. Heavy rainfall events showed this especially.

Radar provides real-time spatial coverage across regions exceeding 200 kilometers. The system creates spatially complete, high-resolution profiles of approaching storms. Yet rainfall amounts derived from radar represent estimations rather than direct measurements and introduce potential bias.

Environmental Factors Affecting Accuracy

Wind creates the most substantial measurement error across all catching-type rain gages mounted above ground. Conventional cylinder gages mounted at 0.5 meters catch 9.4% less than pit gages at lowland sites and 23.8% less at upland sites. Improved-aerodynamic gages reduce undercatch to 3.4% and 11.2%. Wind speeds averaging 10 m/s at upland locations compound these losses.

Radar calibration presents additional accuracy challenges. Inadequate calibration of radar networks contributes large errors. The system calibrates reflectivity every volume scan using test signals generated internally. But severe deviations from standard atmospheric refraction occur in layers with large vertical gradients of temperature and water vapor.

Handling Light Rain vs Heavy Rainfall

Piezoelectric rain gages struggle with detecting light rain and can produce false readings from external factors like wind and dust. Piezoelectric precipitation sensors show overestimation through positive error values compared to ground-level lysimeter measurements. The deviations between values increase with rainfall intensity. Tipping bucket mechanisms demonstrate negative error values and indicate underestimation of precipitation at ground level.

Radar performance degrades under extreme conditions. The system does not process reflectivity above adaptable thresholds based on the assumption that such values indicate hail rather than rain. Sites adjust thresholds from 50 to 55 dBZe depending on climatological regime.

Installation, Maintenance, and Cost Considerations

Original Purchase and Setup Costs

Budget planning should begin with an understanding that rainfall measurement technologies vary widely in cost depending on their design, accuracy, and functionality. Basic mechanical rain gauges are typically the most economical option, while more advanced designs—such as weighing-type instruments—tend to be priced higher due to their improved measurement capabilities and more complex construction.

Piezoelectric rain gauges usually fall somewhere in the middle of the price spectrum. Standard models are generally affordable, but systems designed for professional or multi-sensor deployments can become significantly more expensive. At the high end of the market, instruments designed for scientific research and long-term environmental monitoring command much higher prices because of their precision, durability, and calibration requirements.

The inclusion of modern communication technologies also affects the overall cost. Rain gauges equipped with wireless connectivity or smart data-transmission features typically cost more than standalone instruments. Systems designed for remote monitoring, particularly those with telemetry or satellite communication capabilities, require additional hardware and infrastructure, which further increases the investment. However, large-scale production and integrated electronics manufacturing can help reduce the per-unit cost of these systems.

In practice, the final price of a rainfall monitoring solution depends not only on the measurement technology itself but also on factors such as data transmission, installation configuration, system integration, and the intended application environment.

Installation Requirements and Complexity

Location selection determines measurement accuracy before you collect a single data point. The gage should be twice as far from obstacles as those obstacles are tall. Developed areas require you to be as far from obstacles as they are high. A tree that measures 20 feet tall means you should position your gage 40 feet away. The distance should be four times the nearest obstruction’s height.

Height matters differently based on your environment. Open areas work best when you place the gage top about 2 feet off the ground to reduce wind speed effects. Developed areas require 5 feet elevation to minimize nearby obstacle impacts. Scientists recommend 0.3 meters from the rain collector top to ground level. Mount the gage on a post with a rounded, pointed, or slanted top to prevent upward splash.

Graziers self-installed rain gages in under two hours, with an average of 35 minutes spent selecting the optimal location. The gage must remain level. Unbalanced positioning disturbs calibrated systems and produces inaccurate readings.

Ongoing Maintenance Needs

Rain gages require monthly maintenance to keep instruments in optimal condition. Tipping bucket gages need cleaning at least monthly, and you should increase frequency during heavy rainfall periods when algae buildup accelerates. Service visits for calibration checks every two to three months maintain highest accuracy.

Leaves, debris, and bird nests clog gages while evaporation and calibration drift introduce errors over time. Accessing gages for maintenance becomes challenging and expensive in remote areas. Piezoelectric sensors require minimal maintenance due to their durability and design, which reduces replacement frequency.

Long-Term Operational Expenses

Communication subscriptions for remote systems run around $10 to $15 per month per device. Professional rain gage systems carry annual maintenance costs of about $50 for calibration and repairs, totaling $750 over five years including the original $500 investment. DIY systems cost $16 at first with $10 annual maintenance, reaching $66 over five years.

Piezoelectric sensors deliver lower long-term costs through high durability and minimal maintenance requirements. Traditional rain gages require regular maintenance and mechanical component replacement, which drives higher maintenance expenses.

Best Applications for Each Technology

At the Time You Should Choose Piezoelectric Rain Gages

Piezoelectric technology excels in environments that just need high precision and rapid response capabilities. Scientific research fields benefit from accurate up-to-the-minute measurements that capture small rainfall amounts and instantaneous heavy rain. Water resource management operations rely on detailed weather data to make informed decisions.

Urban drainage system monitoring represents an ideal application. These sensors transmit monitoring data to cloud databases with up-to-the-minute updates and enable managers to adjust drainage strategies promptly during rainstorm events to prevent waterlogging. Precision agriculture continues gaining traction among farmers who require maximum output with limited resources. Rain gage data determines water in fields and rainfall patterns that contribute to germination, crop growth and yield.

At the Time Radar Rain Gages Are the Better Option

Weather radar serves as a vital tool to predict rainfall across extensive geographic coverage. The technology detects precipitation at ranges exceeding 200 kilometers and creates spatially complete, high-resolution profiles of approaching storms. Emergency and water management teams learn about unfolding rainfall events and pinpoint exactly where action becomes necessary.

Spatial resolution of 1 km proves adequate for hydrodynamic model results in urban hydrology applications. Reduced temporal resolution affects hydrological modeling accuracy more than decreasing spatial resolution, especially when you have small drainage areas. Rain gages provide valuable point rainfall depths, yet their density remains modest. Radar fills this coverage gap.

Industry-Specific Use Cases

Agriculturalists, farmers, ranchers and gardening experts all rely on rain gage data. Forestry operations analyze sensor data to prevent forest fire risks. Construction sites ensure compliance with runoff regulations while understanding rain effects on soil stability and project timelines. Meteorologists require precipitation data for weather forecasting and climate change studies. Rain gage networks integrated with radar produce more reliable datasets through gage-adjusted radar rainfall and strengthen flood forecasting and stormwater management capabilities.

Making the Right Choice for Your Weather Station

Assessing Your Monitoring Needs

Your purpose determines the first step in selecting how does a rain gage measure rainfall for your station. Home gardening just needs simple gages that track simple precipitation amounts. Professional meteorological work demands advanced models with high precision. Your data usage patterns matter equally. Point measurements are enough if you monitor a small property to maintain the landscape. Organizations that need spatial precipitation variability analysis across regions require systems offering broader geographic coverage.

Your application determines the measurement precision you need. Agricultural operations that manage irrigation schedules benefit from gages detecting subtle rainfall changes. Flood forecasting and stormwater management operations need immediate data transmission and integration with hydrological models.

Budget and Resource Availability

Set a budget that arranges with your monitoring objectives and maintain discipline while learning options. Think over not just original purchase costs but also long-term operational expenses. Digital displays, historical data tracking and wireless connectivity increase functionality but raise prices. Review whether additional features match your actual monitoring interest level before you commit funds.

Location and Environmental Conditions

Your installation site determines measurement reliability before you collect data. The gage should be twice as far from obstacles as those obstacles are tall. Wind effects make ideal siting conditions difficult to achieve in urban and suburban environments. Class 2 locations provide conditions suitable to get high-quality rainfall data. Class 3 locations remain acceptable only when better sites are unavailable. You must review siting conditions annually since nearby trees grow and new structures alter the environment.

Integration with Existing Systems

Rain gage sensors connect with irrigation systems to optimize water usage and temporarily suspend watering when they detect rainfall. Integration with agricultural systems helps farmers improve crop yields and reduce weather-related operational risks. Wireless connectivity makes data transmission to indoor displays possible, though most monitors must remain within 100 feet of sensors. Network design considerations include station density, data transmission methods and software to structure raw data into applicable reports.

Conclusion

Choosing between piezoelectric and radar rain gages ended up being a matter of your specific monitoring requirements and budget constraints. To cite an instance, piezoelectric sensors deliver excellent value for agricultural operations and urban drainage monitoring if you need precise point measurements with minimal maintenance costs. But radar systems prove essential when you track precipitation across large geographic areas for weather forecasting or emergency management.

You should assess your data needs, installation environment, and long-term operational costs before making your final decision. Both technologies offer distinct advantages. Matching the right technology to your application will give you accurate rainfall data that supports better decision-making for years to come.
