EcoSentec Mobile Soil Testing Solution
Mobile Soil Testing Instrument

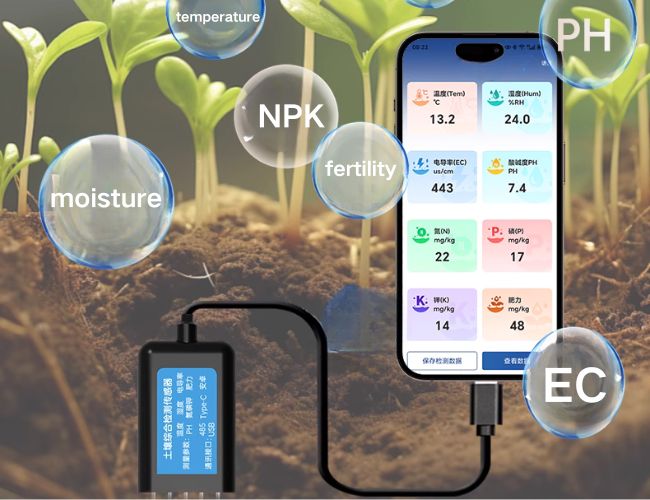

This compact and user-friendly mobile soil testing instrument is designed for quick and accurate on-site soil analysis. It connects directly to your smartphone and works seamlessly with a free, intuitive app. With immediate measurement and real-time data display, users can get precise soil condition readings anytime, anywhere. Its portable design makes it ideal for fieldwork, agriculture, gardening, and environmental monitoring.
PARAMETERS | Soil Moisture | Soil Temperature | Soil EC | Soil PH | Soil NPK |
Range | 0%-100% | -40℃~+80℃ | 0-20000us/cm | 3~9PH | 0~1999mg/kg |
Accuracy | ±2% within 0-50%, ±3% within 50-100% (Brown soil, 60%, 25℃) | ±0.5℃（25℃) | ±3% (0-10000us/cm); ±5% (10000-20000us/cm) (brown soil, 60%RH, 25℃) | ±0.3PH (Brown soil, 60%RH, 25℃) | ±2%F.S |
Resolution | 0.1% | 0.1℃ | 1us/cm | 0.1 | 1mg/kg(mg/l) |
Working temperature | -20 ~+60℃ | ||||
Compensation temperature | Compensation range 0-50℃ | ||||
Power supply | 5~30V DC | ||||
Max. Power consumption | RS485: 0.5W (24V DC); Current: 0.4W (12V DC); Voltage: 0.3W (12V DC) | ||||
Signal output | 4~20mA,0~5V,RS485, SDI-12 | ||||
Protection | IP68 | ||||
Sensor probe material | 316, Anti-corrosion special electrode | ||||
Sealing material | Black flame retardant epoxy resin | ||||
Cable length | 2 meters by default, cable length can be customized as required | ||||
Dimension | 45*15*123mm | ||||

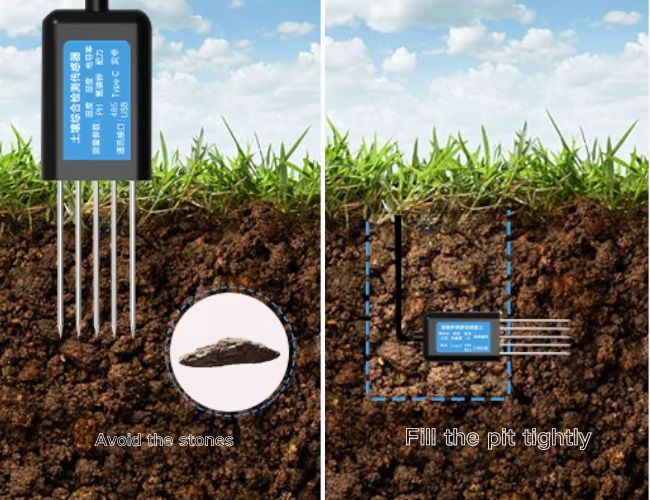

The device supports both rapid testing and buried testing methods:
Rapid Testing Method: Quickly measure soil parameters by inserting the sensor directly into the soil surface, ideal for fast spot checks.
Buried Testing Method: Bury the sensor at specific depths for more stable, long-term soil monitoring, perfect for detailed research and crop management.
Introduction to App Functions
Designed for ease of use and professional-level analysis, the mobile app enhances the functionality of the soil testing instrument with powerful features:

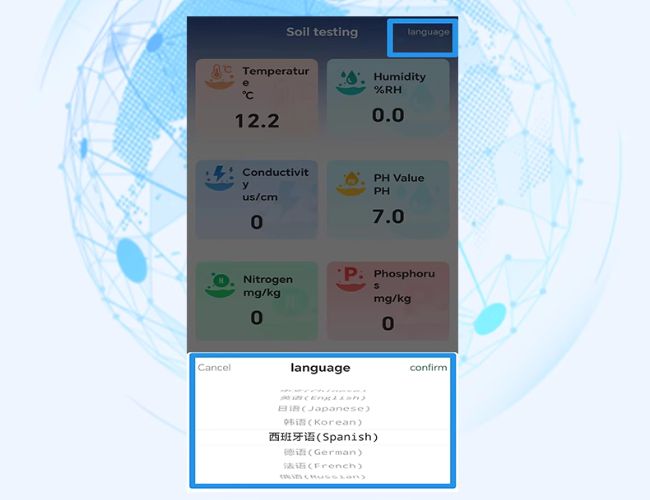

🌐 Multilingual Interface: Supports interface interchangeability among 8 languages, making it accessible to users worldwide.
📊 Real-time Data Display: Instantly view soil readings on your mobile device.

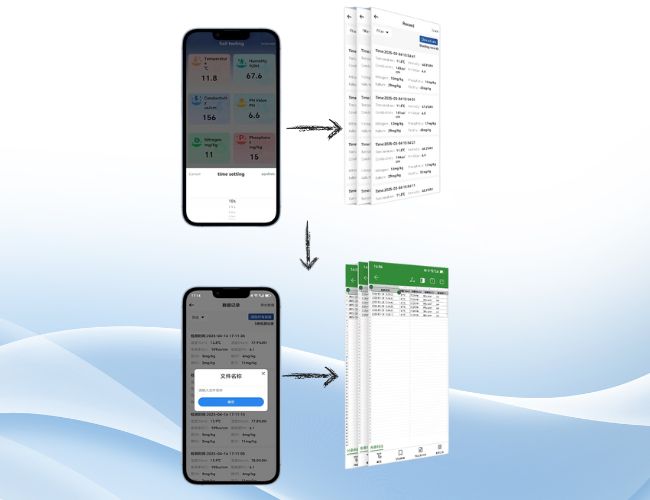

🗃️ Historical Data Storage & Management: Save, view, and manage past measurement records for long-term analysis.
📈 Graphical Trend Analysis: Visualize changes in soil parameters over time with easy-to-read charts.
📤 One-Click Data Export:Export data in Excel or PDF formats for reporting and sharing.
