Português The ES-W307 series IP68 Ultrasonic Anemometer utilize advanced ultrasonic technology to measure wind speed and direction accurately in real time, providing reliable data support for weather forecasting, environmental monitoring, and wind energy utilization. Whether in complex and changing natural environments or demanding industrial environments, they ensure the accuracy and reliability of measurement results.

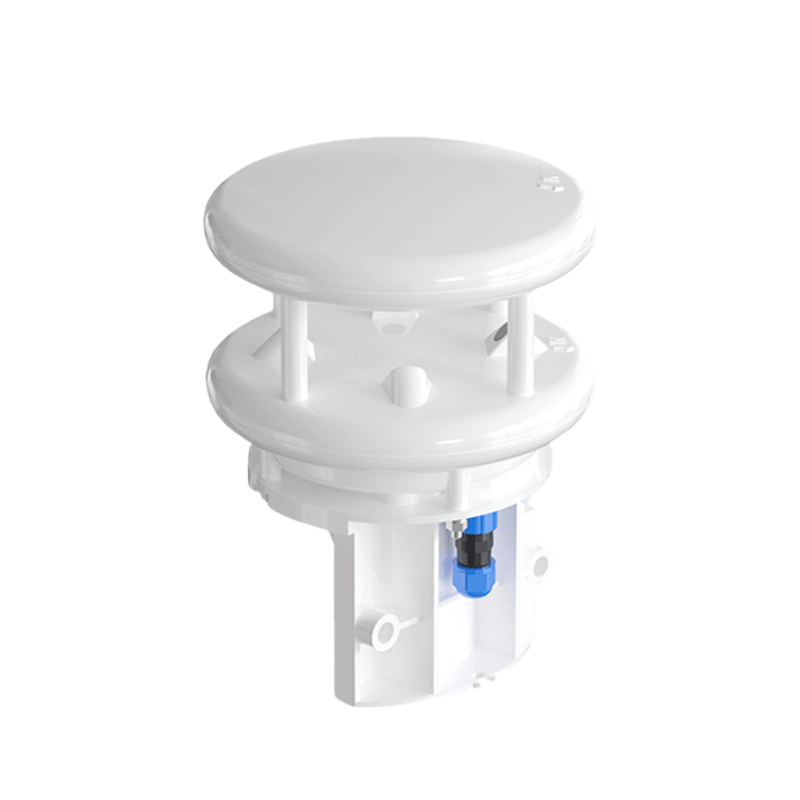

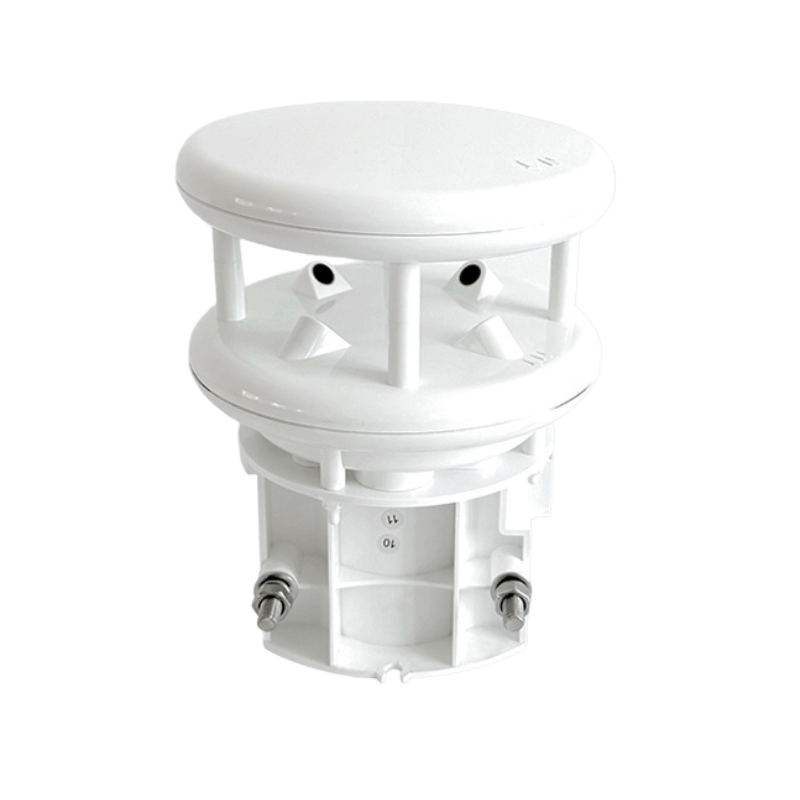

ES-W307 IP68 Ultrasonic Anemometer
ES-W307 series IP68 Ultrasonic Anemometer utilize advanced ultrasonic technology to measure wind speed and direction accurately in real time, providing reliable data support for weather forecasting, environmental monitoring, and wind energy utilization. Whether in complex and changing natural environments or demanding industrial environments, they ensure the accuracy and reliability of measurement results.
|
Windgeschwindigkeit |
Measurement range: 0-75 m/s |
|
Measurement accuracy: ±0.5 m/s (≤20 m/s),±3% (>20 m/s) |
|
|
Resolution: <0.1 m/s |
|
|
Flügelrichtung |
Measurement range: 0-360° |
|
Accuracy: ±2° |
|
|
Resolution: <1° |
|
|
Betriebstemperatur |
-40-80°C |
|
Operating Humidity |
0-100%RH |
|
Ausgangssignal |
RS485 Modbus RTU protocol |
|
Power Supply Method |
DC12-24V, DC12V(recommend) |
|
Average Power Consumption |
170mA/12V (no heating), 750mA/12V (heating) |
|
Communication Mode |
Supports multiple transmission methods including RS485, RS232, USB, Ethernet, WIFI, and Beidou |
|
Baud Rate |
4800~115200 Default baud rate: 9600 |
|
Data Reception Mode |
Wireless data cloud platform APP/PC/webpage Wired standalone software,Secondary development communication interface |
|
Protection Rating |
IP68 |
|
Output Connector |
IP68 SP13-6 |
|
Sensor Expansion |
Supports |
|
Carrier Type |
Fixed brackets, portable mobile brackets, vehicle-mounted, ship-mounted, tower-mounted, and offshore platforms, etc. |
